Description

🔹 Overview

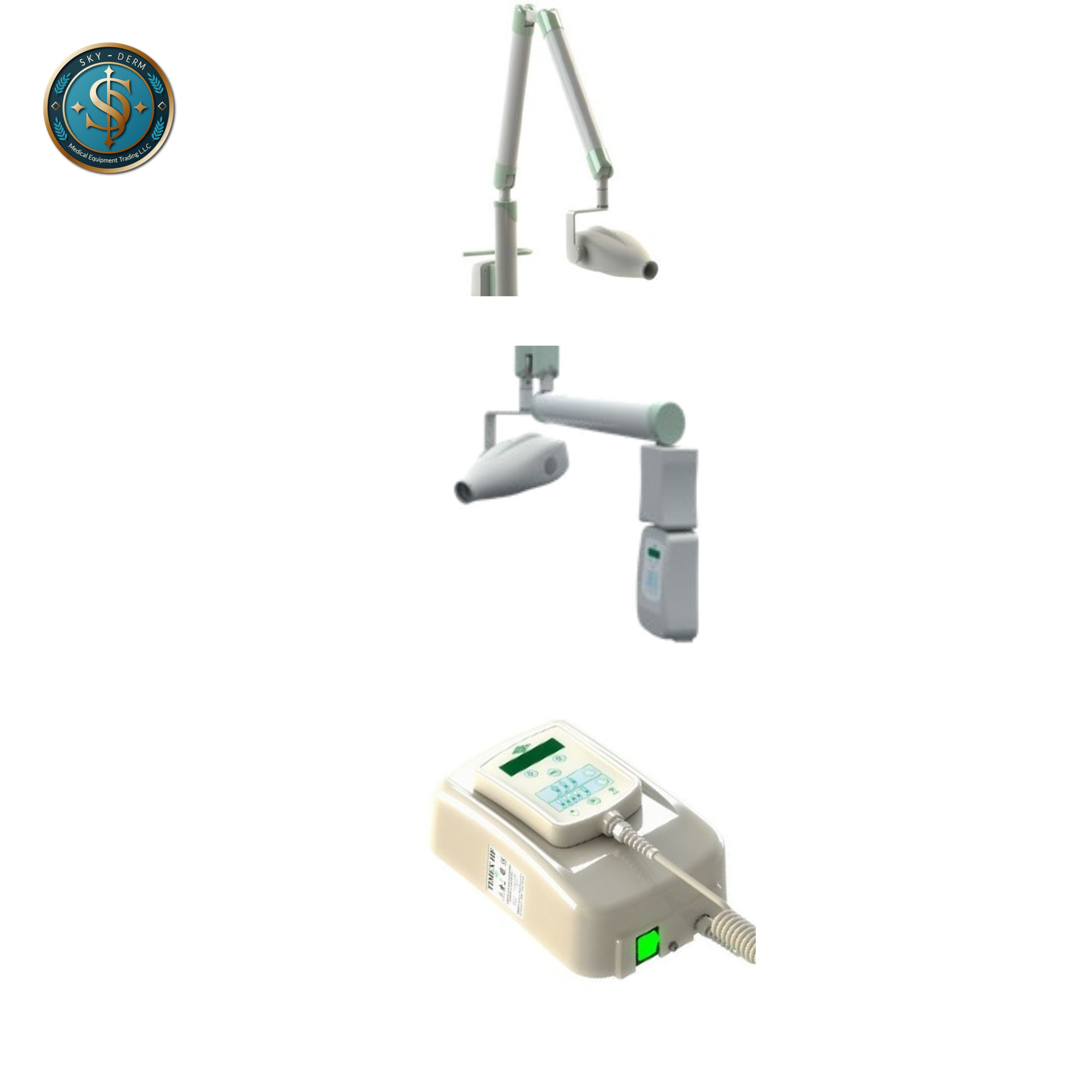

• Advanced Italian-made high-frequency dental X-ray unit.
• Provides superior image quality with ultra-low radiation leakage for maximum patient and operator safety.
• Compact design with flexible extension arm for easy use in clinics.
🔹Electrical Features
• Power Supply: 120–230V ±10%
• Frequency: 50/60Hz
• Current: 2.5A (230V)
🔹X-Ray Tube Features
• Tube: CEI OCX 70P
• Focal Spot: 0.7 mm
• Anode Material: Tungsten
• Total Filtration: ≥ 2 mm Al eq.
🔹Radiological Features
• Min. Focus-Skin Distance: 200 mm
• Irradiated Area: Ø 55 mm
• Leakage @1m: <0.25 mGy/h
• High Voltage: 60–65–70 kVp
• Anode Current: 7 mA
• Exposure Time: 0.01 – 2.00 s
• Duty Cycle: 1:60
• Control Logic: Deadman
🔹Mechanical Features
• Extension Arm: 500–900 mm (Max extension: 1980 mm)

Upgrade your dental diagnostics with the ORIX HF Advantage – Italian Dental X-Ray Unit.
