Description

🔹 Overview
• Italian-made high-frequency (HF) dental X-ray unit.
• Delivers high-resolution images with ultra-low radiation leakage.
• Ergonomic design with extension arm up to 1980 mm for flexibility in clinics.

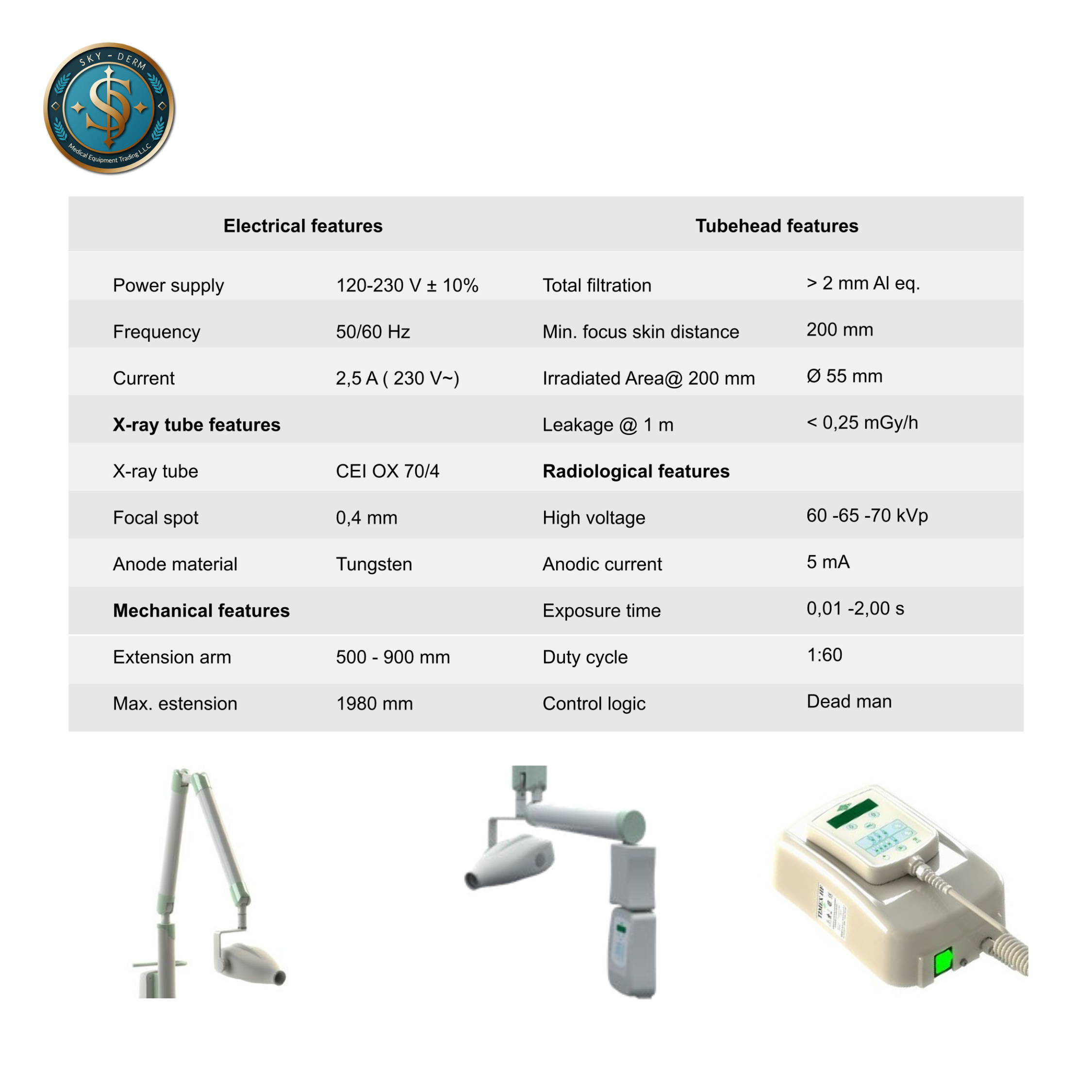

🔹 Electrical Features
• Power Supply: 120–230V ±10%
• Frequency: 50/60Hz
• Current: 2.5A (230V)
🔹 X-Ray Tube Features
• Tube: CEI OCX 70/4
• Focal Spot: 0.4 mm
• Anode Material: Tungsten
• Total Filtration: ≥ 2 mm Al eq.
🔹 Radiological Features
• Min. Focus-Skin Distance: 200 mm
• Irradiated Area: Ø 65 mm
• Leakage @1m: <0.25 mGy/h
• High Voltage: 60–65–70 kVp
• Anode Current: 5 mA
• Exposure Time: 0.01 – 2.00 s
• Duty Cycle: 1:60
• Control Logic: Deadman
🔹 Mechanical Features
• Extension Arm: 600–900 mm (Max extension: 1980 mm)

Upgrade your clinic’s diagnostics with the ORIX HF Plus – Italian High-Frequency Dental X-Ray Unit.
👉 Contact us today for special pricing and warranty details!
