Description

🔵 Description:
The Pioon H1 980 nm Soft Tissue Dental Laser is a high-performance diode laser built for precision soft-tissue dental procedures. Operating at a 980 nm wavelength with up to 20 W output power, it provides excellent results in gingivoplasty, frenectomy, coagulation, and periodontal therapy.
Equipped with advanced features such as an all-copper cooling system, multi-core CPU control, and a 2K Ultra HD touchscreen, it combines performance, durability, and intuitive operation. With 57 pre-set programs and a smart OS, it ensures consistency and safety for every treatment.
🔵 Key Features:

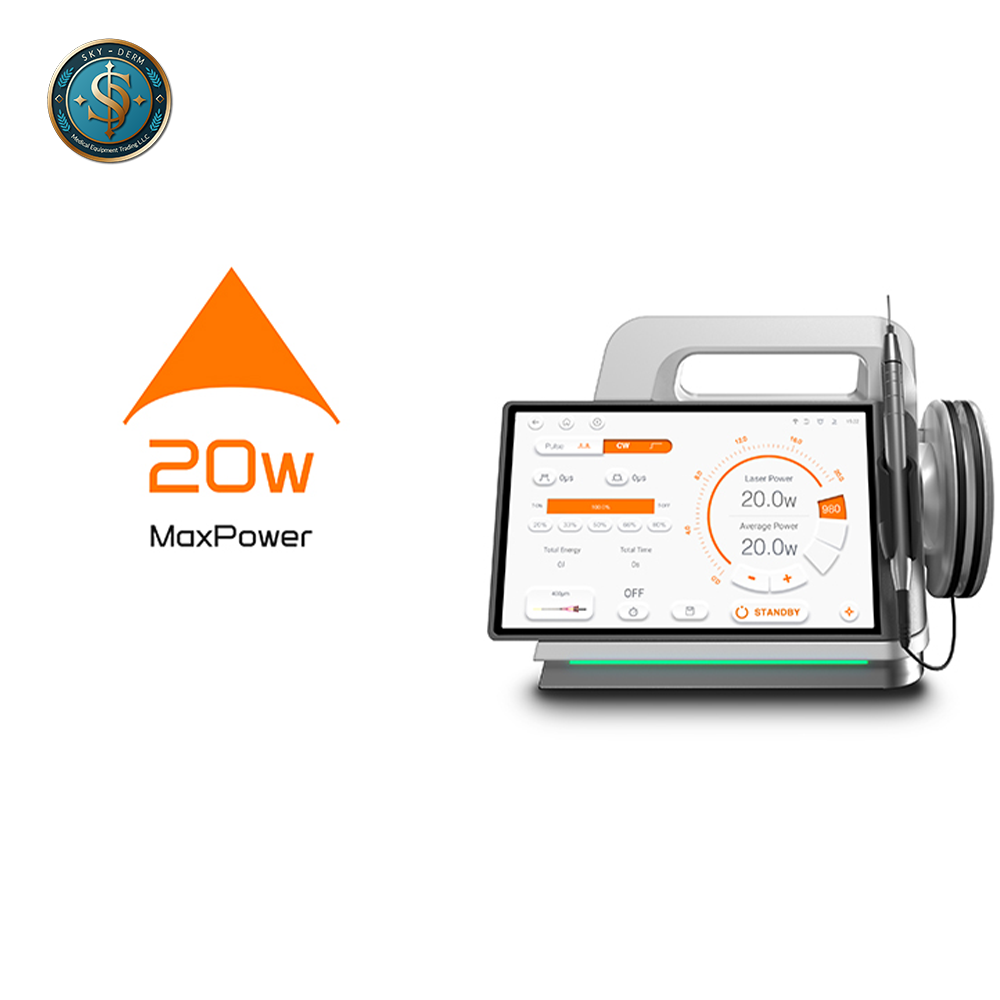

• 980 nm wavelength, 20 W maximum power output
• Continuous and pulsed operation modes

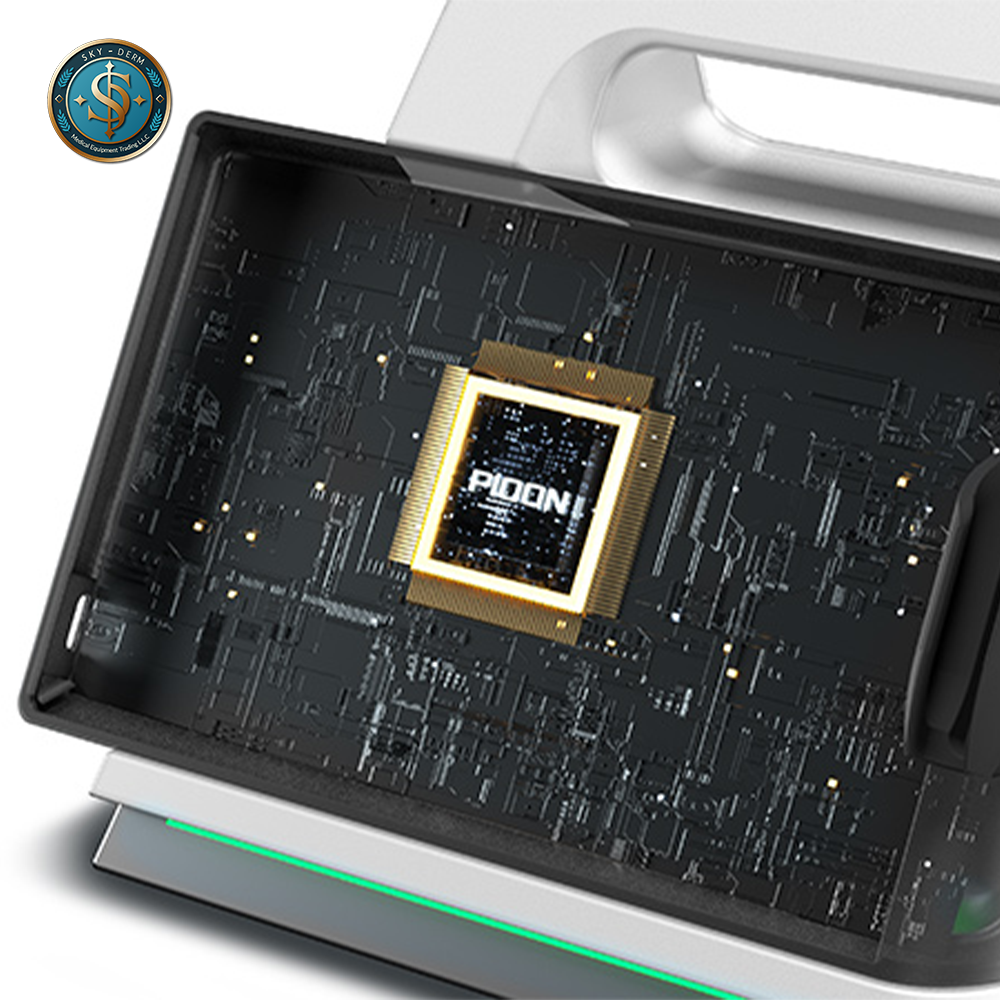

• Multi-core CPU for precise control
• 2K Ultra HD touchscreen interface

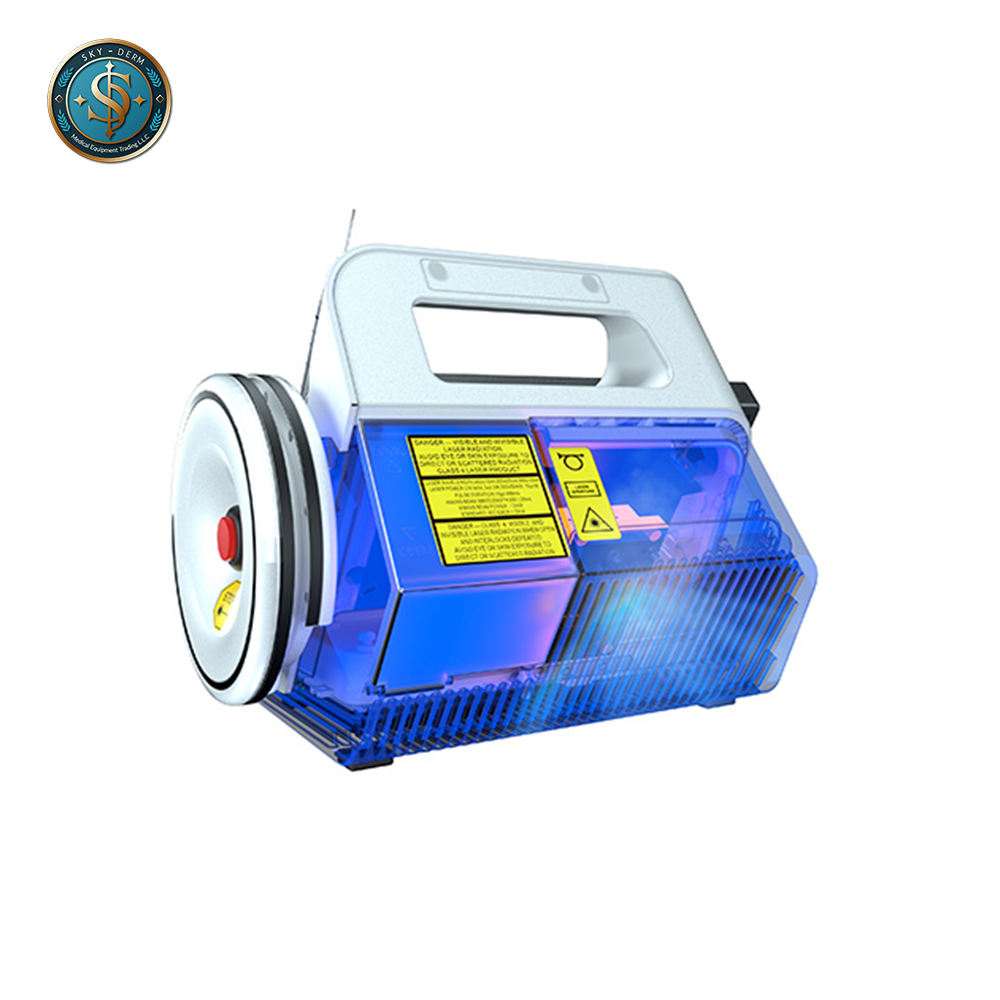

• Pure copper heat-dissipation system
• Fiber options: 200 µm, 300 µm, 400 µm (SMA905 connector)
• Aiming beam: 650 nm, < 2 mW
• Compact and lightweight: ≤ 2 kg
• Optional 3,500 mAh rechargeable battery for cordless use
• Complies with IEC 60601-1, IEC 60601-2-22, ISO 10993
🔵 Technical Specifications:
Specification Value
Wavelength 980 nm
Power Output up to 20 W
Modes Continuous / Pulsed
Frequency up to 20 kHz
Fiber Diameter 200 µm / 300 µm / 400 µm
Aiming Beam 650 nm < 2 mW
Dimensions 225 × 150 × 150 mm
Weight ≤ 2 kg
Battery 3,500 mAh
Power Supply 18 V DC / 5 A

Experience precision and efficiency in dental soft-tissue treatments with the Pioon H1 980 nm Laser.
📞 Contact us now for pricing, demos, or training for your clinic.
