Description

🔵 Description :

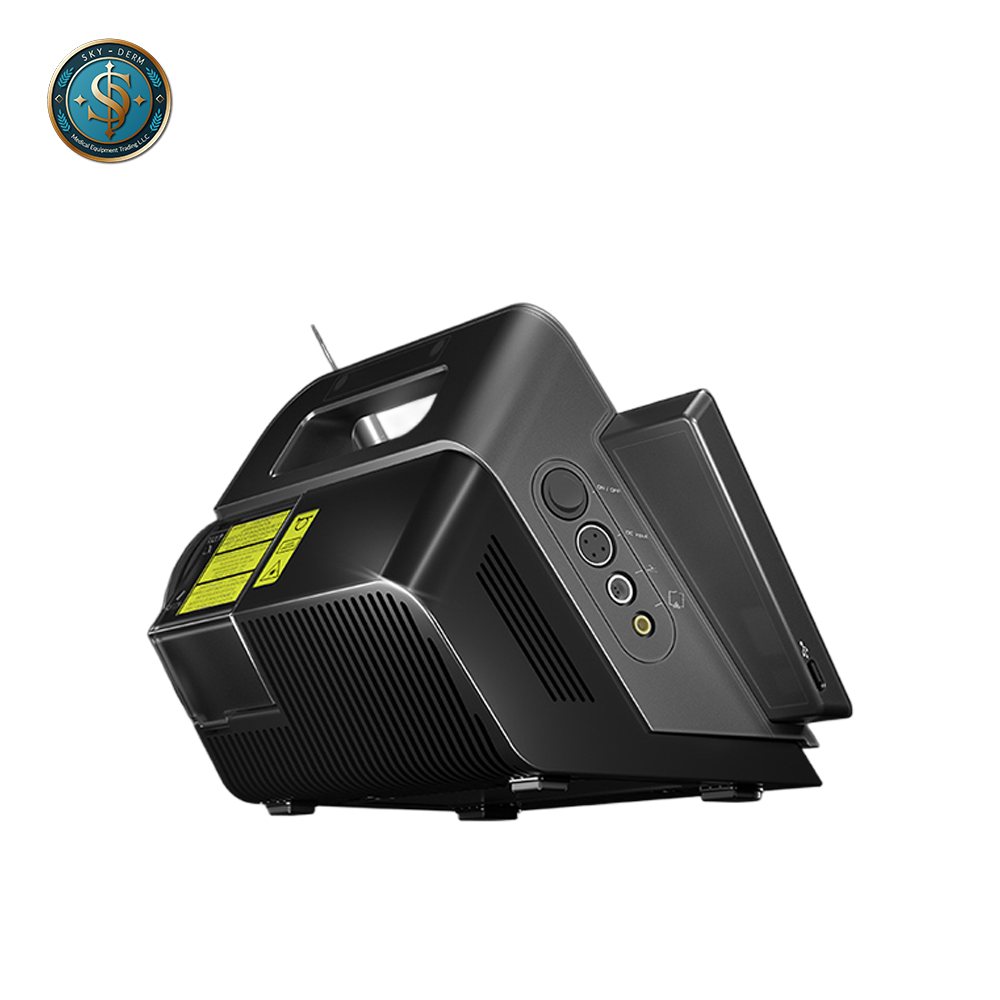

The Pioon S3 Dental Blue Diode Laser is an advanced multi-wavelength laser system designed for precision soft tissue treatments in dentistry. With wavelengths of 450 nm (blue), 650 nm (red), and 810/980 nm (infrared), it offers versatility for cutting, coagulation, disinfection, and biostimulation procedures.

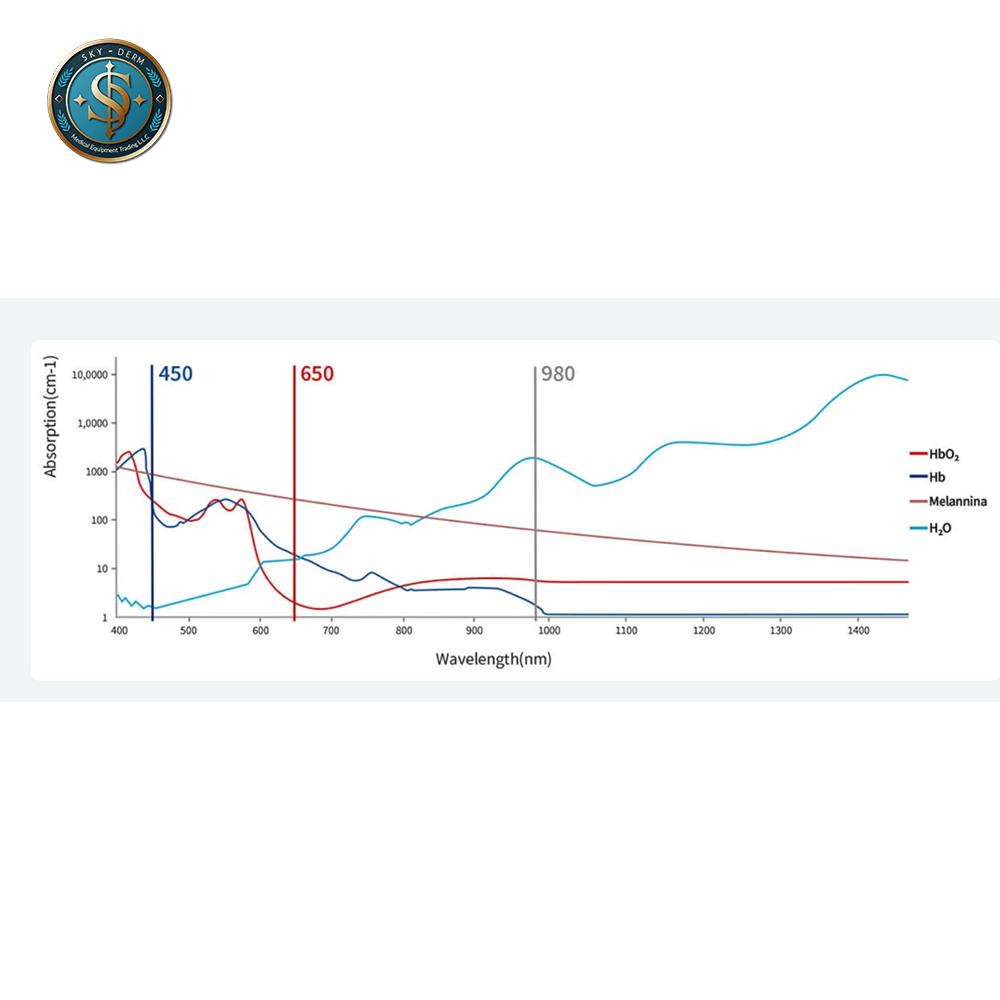

The 450 nm blue laser provides superior cutting precision with minimal thermal damage, while the 650 nm wavelength enhances healing and reduces postoperative pain. Its 810/980 nm infrared options allow for deeper tissue penetration, making it ideal for endodontic disinfection and periodontal therapy.
Compact, powerful, and intuitive, the S3 is a next-generation dental laser that combines clinical efficiency with patient comfort.
🔵 Key Features:
• Multi-wavelength system: 450 nm (blue), 650 nm (red), 810/980 nm (infrared)
• Power output: up to 20 W
• Continuous (CW) and pulsed operation modes

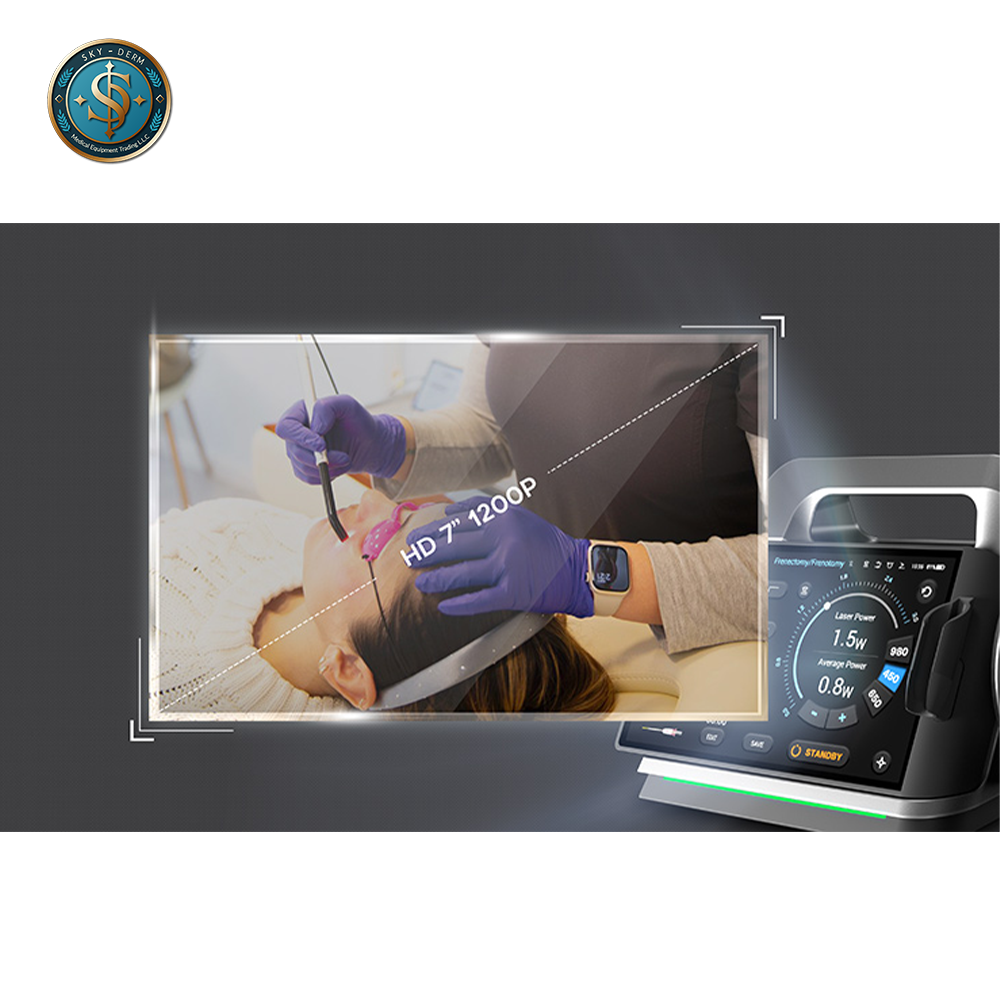

• Ultra HD touchscreen interface
• Aluminum-magnesium body with full copper heat dissipation

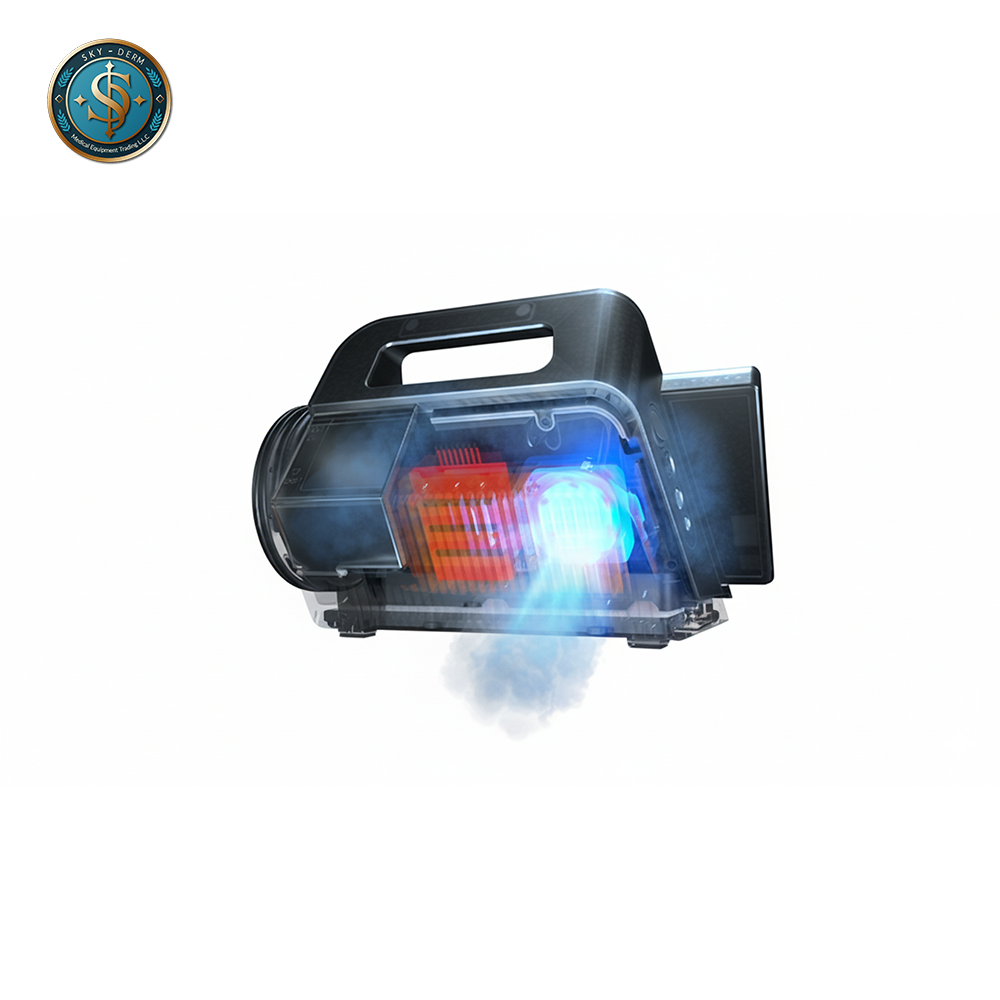

• Dual cooling fans and heat pipe system for stable performance
• Fiber compatibility: 200 µm, 300 µm, 400 µm

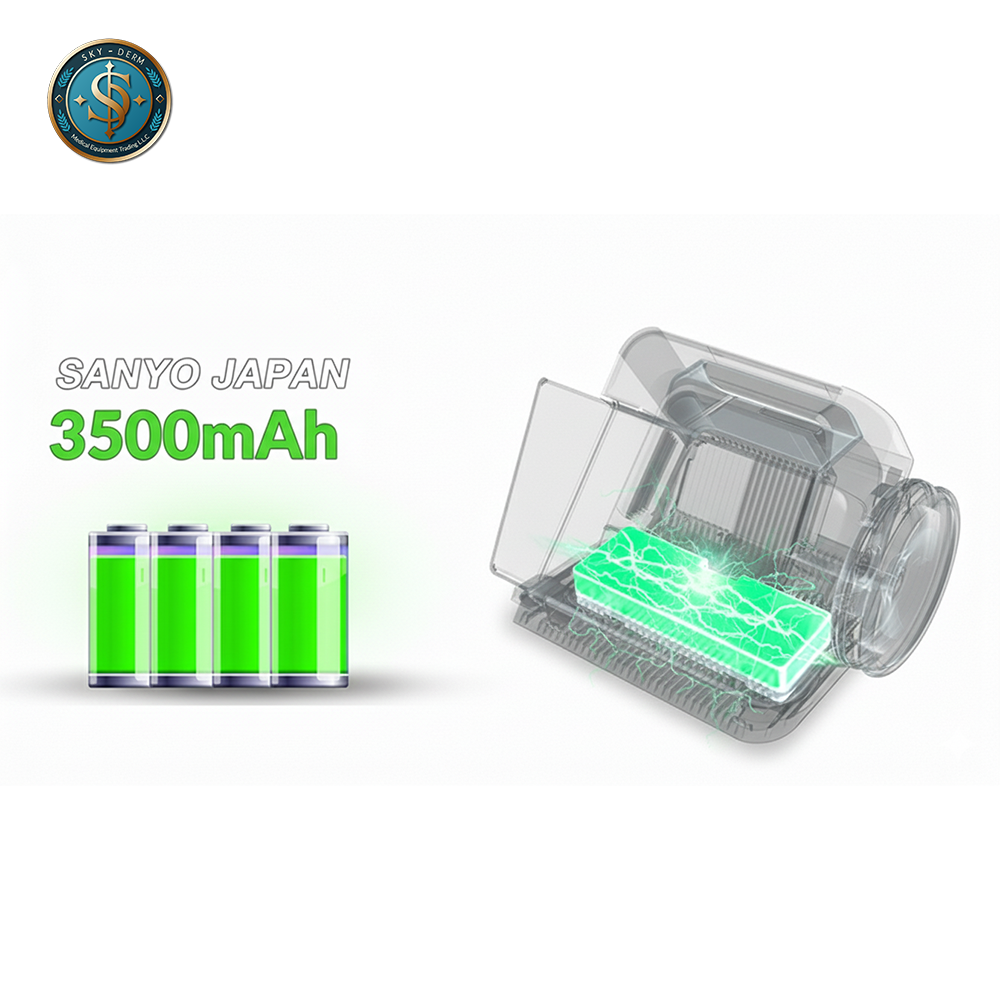

• Battery: 3,500 mAh for cordless operation
• Lightweight and portable design (≤ 2 kg)
• 57 preset treatment programs for multiple dental applications
• Certified to IEC 60601-1 / IEC 60601-2-22 standards
🔵 Technical Specifications:
Specification Value
Wavelengths 450 nm / 650 nm / 810 nm / 980 nm
Power Output up to 20 W
Modes Continuous / Pulsed
Pulse Width Min. 25 µs
Frequency up to 20 kHz
Fiber Options 200 µm / 300 µm / 400 µm
Dimensions 225 × 150 × 150 mm
Weight ≤ 2 kg
Battery Capacity 3,500 mAh
Cooling System Full copper & dual fan design

Upgrade your dental practice with the Pioon S3 Blue Diode Laser precision, comfort, and versatility in one device.
📞 Contact us now for pricing, live demo, and exclusive offers.
