Description

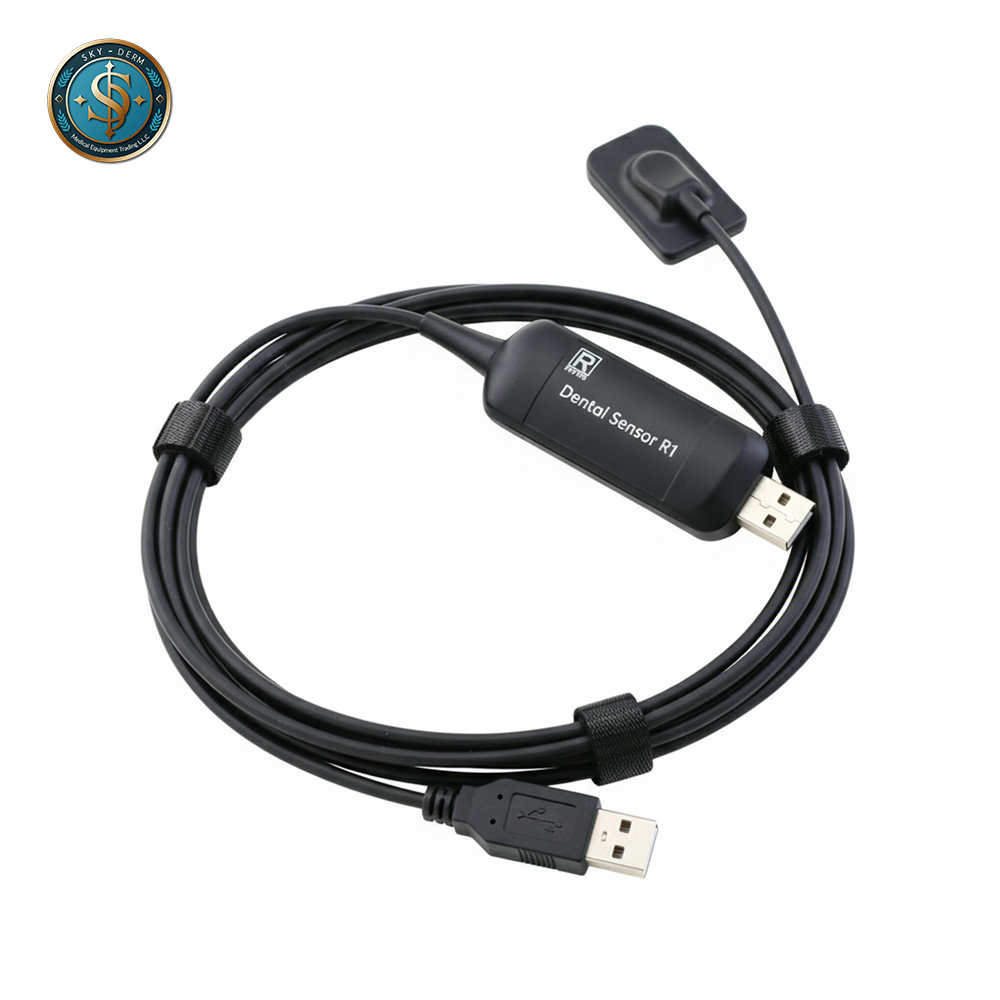

🔵The R1 Dental Intraoral Imaging Sensor provides clear, high-resolution digital X-rays for superior diagnostic accuracy.
Using APS CMOS detector technology and a CsI scintillator, it delivers detailed images with minimal radiation exposure.
Designed with a compact, waterproof body (IP68) and a USB 2.0 interface, it ensures durability, patient comfort, and fast image transfer — ideal for modern dental practices.
________________________________________
🔵Key Features:
• APS CMOS technology for precise and sharp image quality
• CsI scintillator ensures high resolution and low radiation dose
• Ergonomic, ultra-thin design for patient comfort
• 16-bit A/D conversion for enhanced grayscale depth
• Fast USB 2.0 connection for quick image transmission
• Waterproof IP68 rating for safety and hygiene
• Compatible with most dental imaging software systems
• Designed for long-lasting performance and consistent reliability
________________________________________
🔵Technical Specifications (R1):
Specification Value
Detector Technology APS CMOS
Scintillator CsI
Theoretical Resolution 25 lp/mm
True Resolution 20 lp/mm
Pixel Matrix 1000 × 1500
Active Area 20 × 30 mm

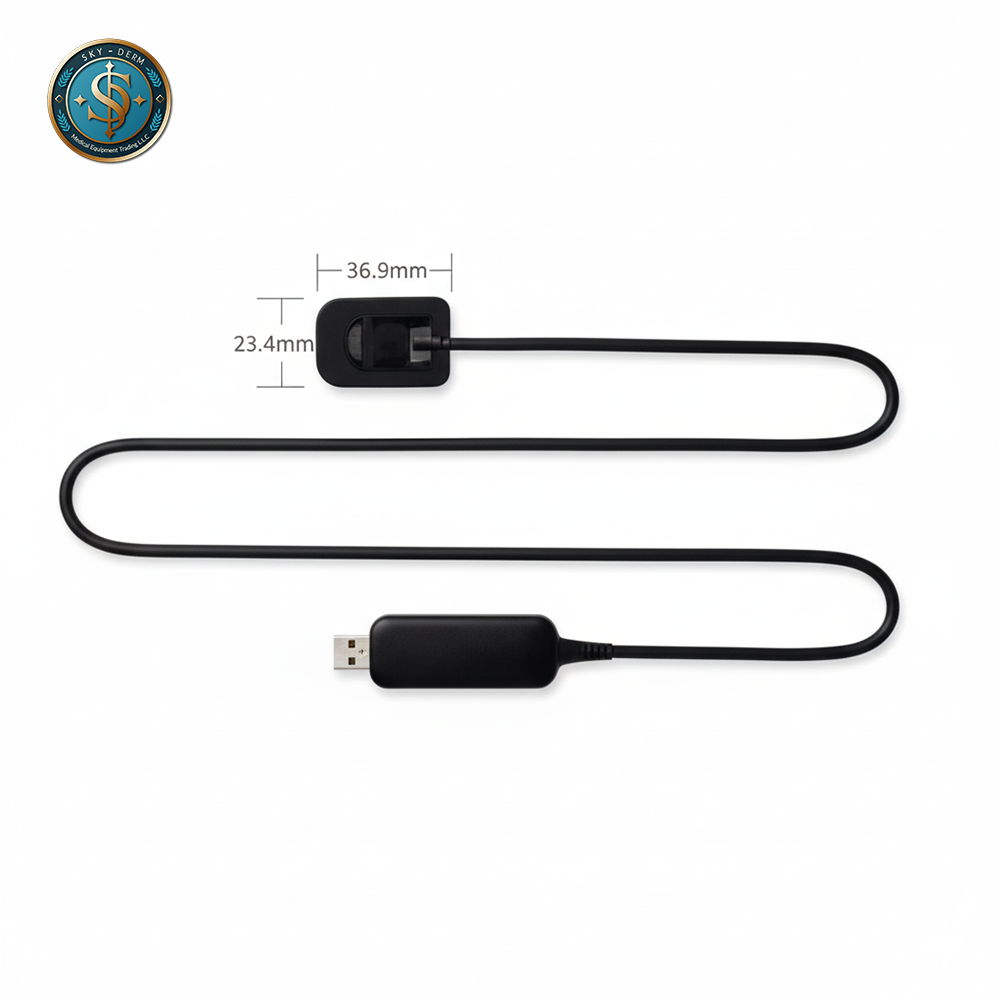

Mechanical Size 25.4 × 36.8 × 4.4 mm
Data Interface USB 2.0
A/D Conversion 16-bit
Protection IP68 (Waterproof)
________________________________________

Experience advanced digital imaging with the R1 Intraoral Sensor – compact, accurate, and designed for superior dental diagnostics.
📞 Contact us today to request a demo or inquire about pricing.
