Description

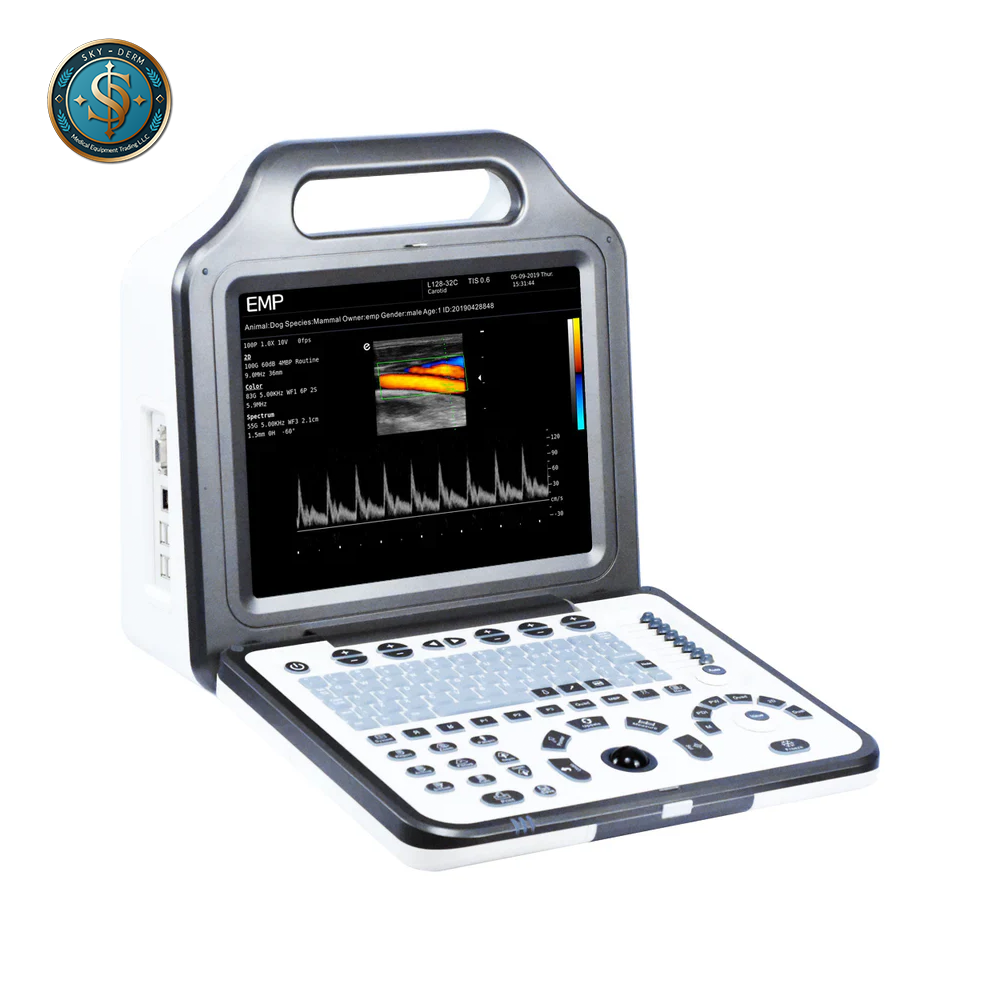

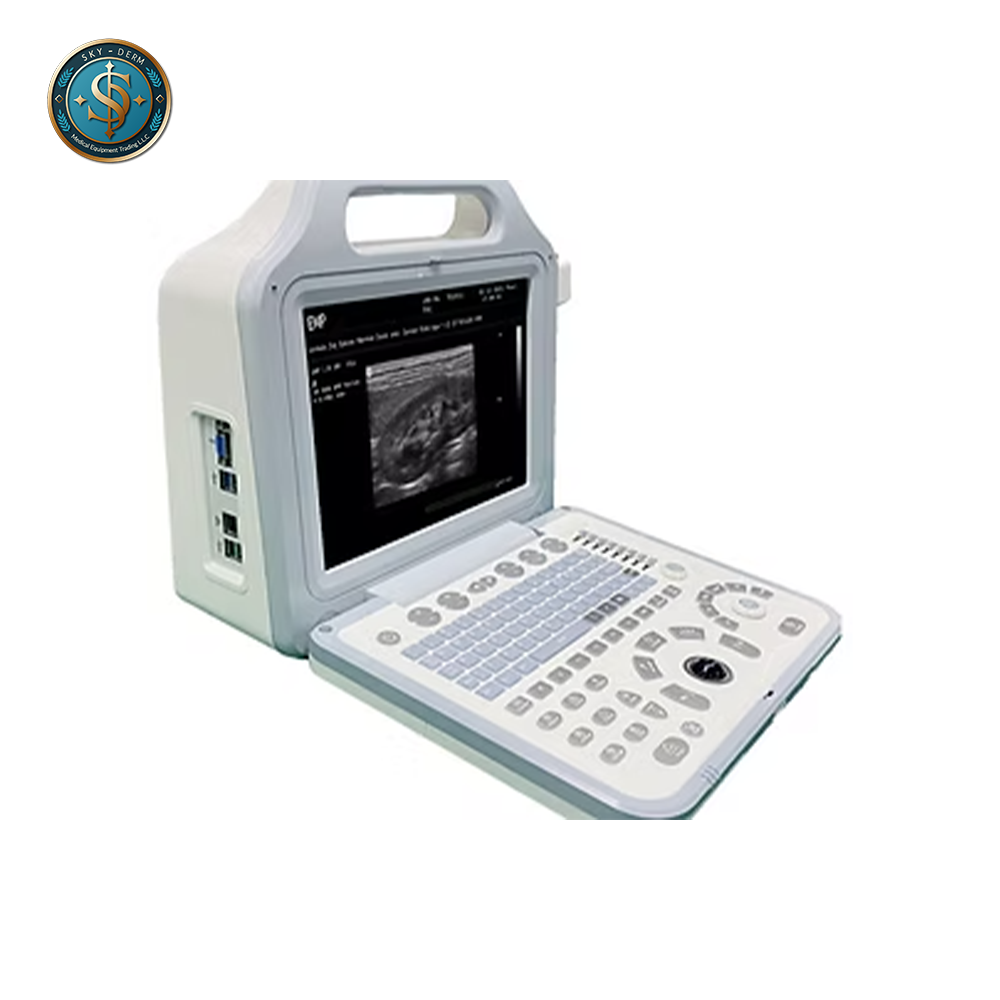

🔵The Emperor N2 Portable Ultrasound System is a compact, fully digital diagnostic ultrasound device designed for maximum portability and clinical versatility.
This system combines advanced imaging technologies with user-friendly operation in an ultra-portable package.
________________________________________
🔵Core Specifications
The Emperor N2 features a 12-inch ultra-thin display in a remarkably lightweight 6.5 kg design (including built-in battery), making it one of the most portable professional ultrasound systems available.
The system dimensions are 378mm × 352mm × 114mm (W × H × D), providing an optimal balance between screen size and portability.
________________________________________
🔵Advanced Imaging Technologies
The system incorporates multiple patented imaging enhancement technologies:
• Speckle Noise Suppression: Advanced algorithms reduce acoustic noise for cleaner image quality.
• Enhanced Image Resolution: Proprietary processing reduces artifacts while improving overall image clarity.
• THI (Tissue Harmonic Imaging): Improves contrast resolution and reduces near-field artifacts.
• TSI (Tissue-Specificity Imaging): Optimizes imaging parameters for different tissue types.
• eSCI (Spatial Compound Imaging): Combines multiple scan angles to reduce speckle and improve image uniformity.
• eFCI (Frequency Composite Imaging): Enhances resolution by combining different frequency components.
________________________________________
🔵User-Friendly Design Features
• People-Centered Design: Ergonomic probe slots and coupler placement cups for comfortable and efficient operation.
• One-Key Technology: Streamlines workflow with simple one-touch functions, including:
o One-key image optimization
o One-key image storage
o One-key report generation
o One-key probe switching
________________________________________
🔵Clinical Applications
The Emperor N2 supports a wide range of diagnostic applications across multiple specialties:
• Abdominal imaging
• Vascular studies
• Cardiac examinations
• Gynecological and obstetric imaging
• Urological applications
• Musculoskeletal imaging
• Small organ studies
• Pediatric examinations
• Veterinary applications
________________________________________
🔵Connectivity and Storage
Multi-Function Storage: The system provides flexible data management through:
• DICOM 3.0 compatibility for seamless network integration
• USB 2.0 connectivity for external data transfer
• Optional internal hard drive for local data storage
• Optional extended battery for longer portable operation
________________________________________
🔵Technical Performance
• Display: 15.6-inch widescreen high-resolution color LCD with LED backlight and anti-flickering technology, rotatable vertically and horizontally
• Frame Rate: Up to 60 fps (probe-dependent) for real-time imaging
• Scan Depth: Maximum 40 cm using the 3C-A probe for deep abdominal examinations
• Probe Connectivity: Standard single probe port, with an optional dual-probe configuration for multi-transducer use
________________________________________
Portable Precision Wherever You Work.
The Emperor N2 Portable Ultrasound from Sky Derm brings hospital-quality imaging to your hands.
Contact Sky Derm today to learn more, request pricing, or schedule a live demonstration.
