Description

🔵G71 High-End Color Doppler Ultrasound System is a premium cart-based diagnostic platform designed for advanced clinical imaging across multiple specialties.
As one of Sky Derm’s most powerful and versatile ultrasound systems, the G71 combines cutting-edge imaging technology, ergonomic design, and intelligent workflow to deliver uncompromising diagnostic performance for hospitals, specialized clinics, and imaging centers.
With its superior 21.5-inch HD display, intuitive 13.3-inch touchscreen, and high-speed image processing, the G71 ensures clinical precision and comfort for every examination.
________________________________________
🔵Display and User Interface

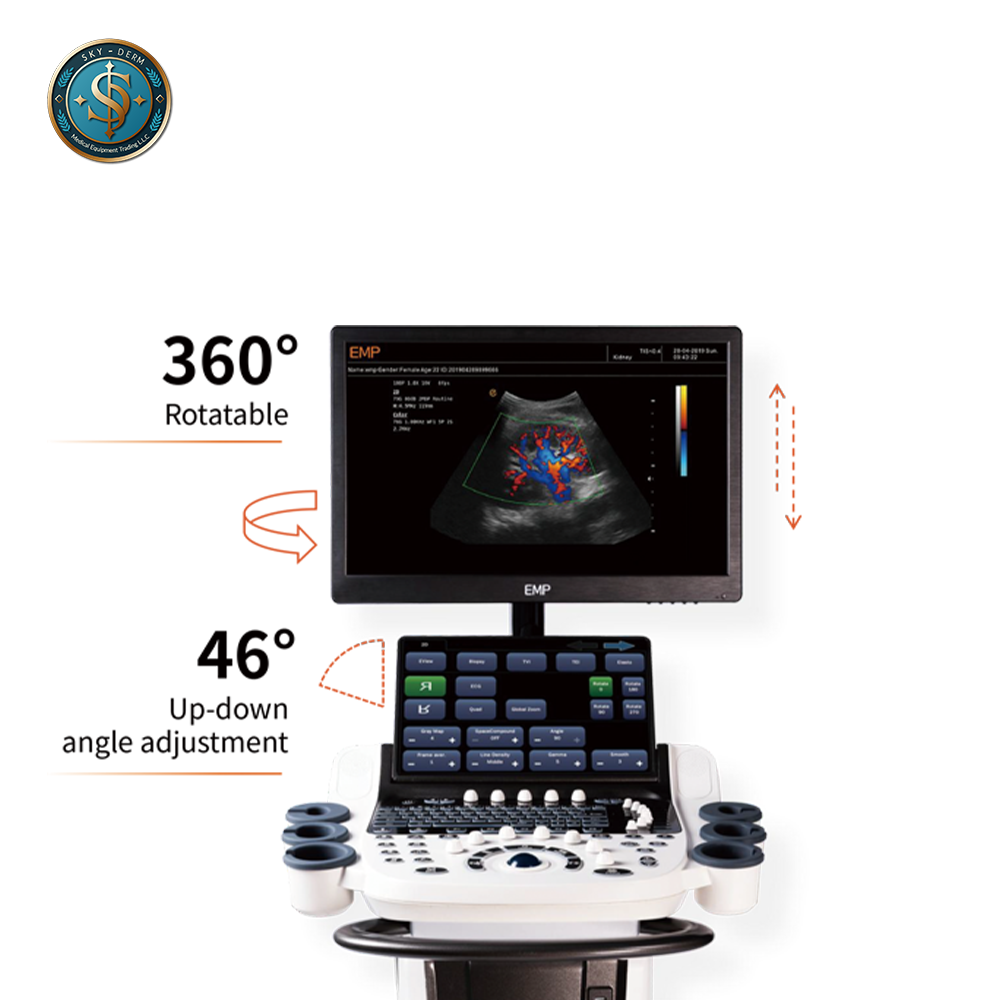

• Main Display: 21.5-inch LED HD medical-grade monitor for crystal-clear visualization.

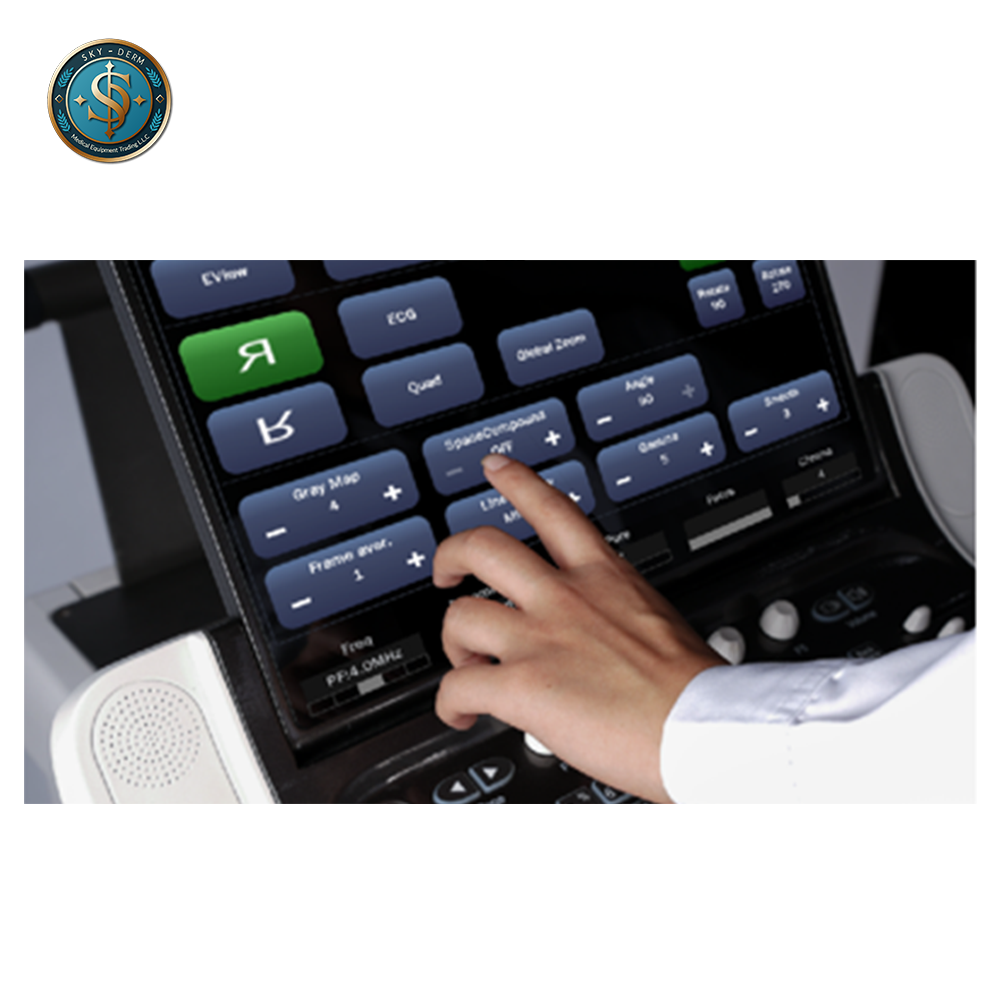

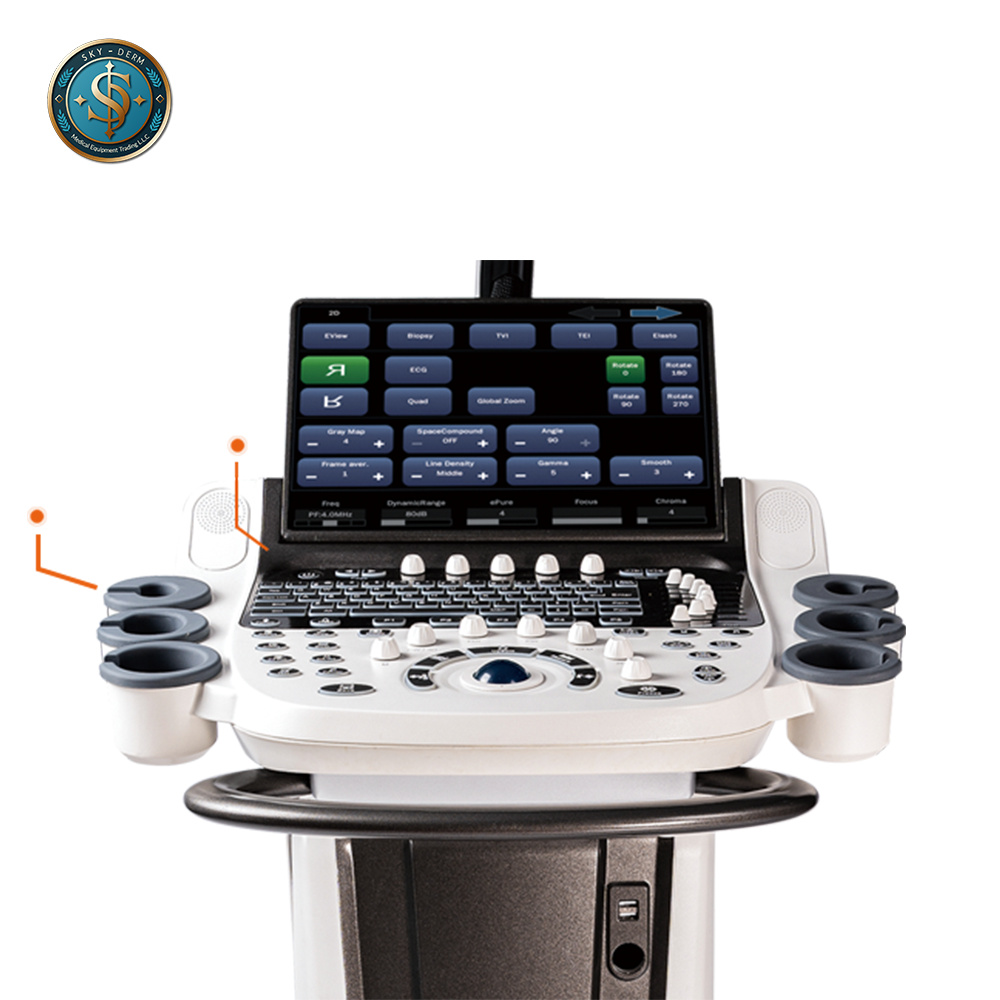

• Touchscreen Control Panel: 13.3-inch adjustable touchscreen (up to 45° tilt) for ergonomic operation.

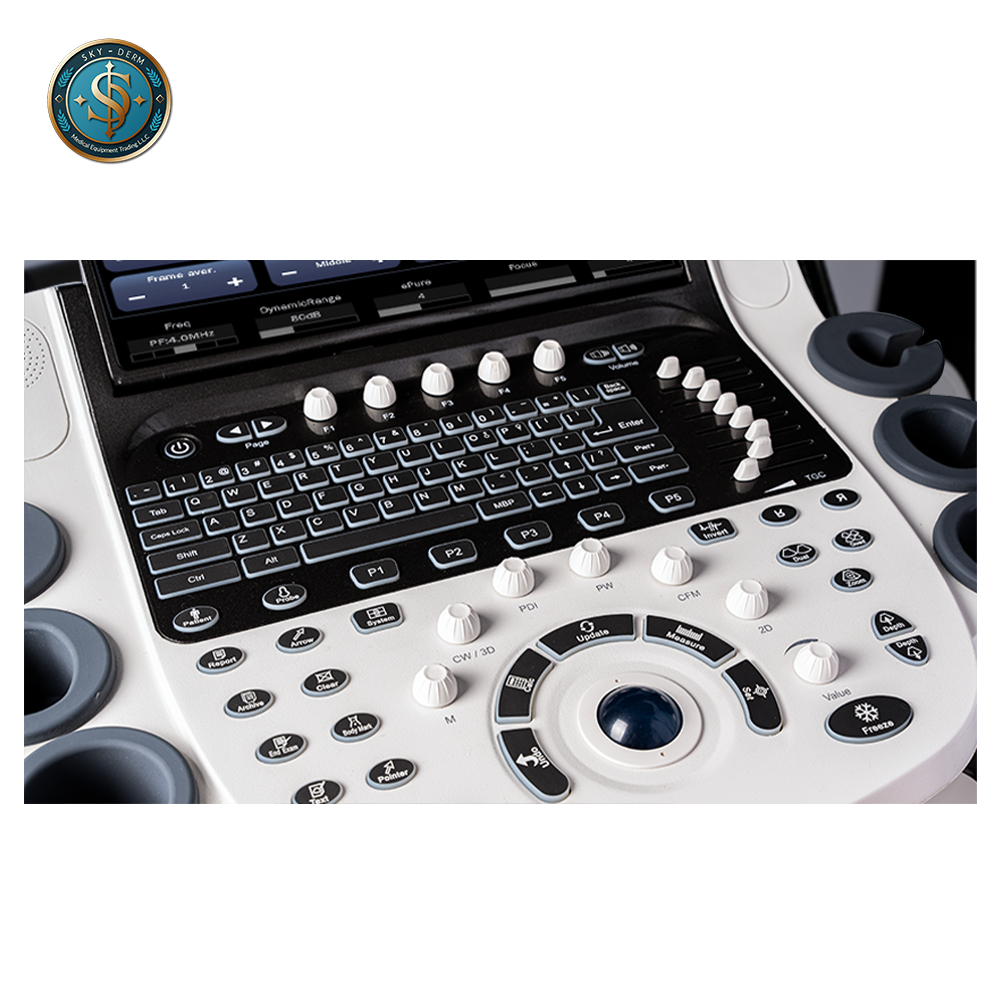

• User Comfort: Backlit alphanumeric keyboard and customizable button layout for smooth workflow.
• Design: Sleek, cart-based mobility with intuitive control positioning to minimize fatigue during long scanning sessions.
________________________________________
Advanced Imaging Modes and Capabilities
• Core Modes: B-mode, M-mode, Anatomical M-mode, Color Flow Mapping (CFM), Power Doppler (PDI), Directional Power Doppler Imaging (DPDI), Continuous Wave (CW), Pulsed Wave (PW), Duplex, and Triplex modes.
• Enhanced Imaging Technologies:
o 3D/4D Real-Time Imaging: Exceptional volumetric rendering with multiple fetal view modes.
o Tissue Harmonic Imaging (THI): Improved contrast and penetration.
o Tissue Specific Imaging (TSI): Adaptive optimization based on tissue type.
o Speckle Reduction Algorithms: Clearer visualization with preserved tissue texture.
o Elastography & Contrast Imaging: Real-time tissue stiffness and perfusion evaluation.
o Panoramic Imaging: Seamless extended field visualization for musculoskeletal and abdominal studies.
________________________________________
🔵Clinical Applications and Specialties
The G71 provides full-spectrum diagnostic versatility across a range of disciplines:
• Abdominal and small-parts imaging
• Obstetrics and Gynecology (OB/GYN) with advanced fetal assessment
• Cardiovascular and vascular diagnostics
• Pediatric and neonatal imaging
• Orthopedic and musculoskeletal (MSK) evaluations
• Anesthesia and interventional guidance
🔵OB/GYN Excellence:
Includes 4D fetal imaging with glass body, silhouette, and tomographic view mapping for superior volume rendering.
Features like Auto NT (Nuchal Translucency) measurement and FreeHand 3D with convex probes enhance workflow and accuracy in prenatal assessment.
________________________________________
🔵Technical Specifications and Performance
• Processor & Storage: High-speed architecture with 1TB internal storage.
• Probe Ports: Supports up to 4 active transducer connectors for multi-specialty usage.
• Dynamic Range: ≥280dB with 256 grayscale levels for precise image depth.
• Focus Control: Up to 12 adjustable focal points for exceptional resolution.
• Gain Systems: 8-zone Time Gain Control (TGC) and Lateral Gain Control (LGC) for fine image balance.
• Frame Memory: Minimum 30,000-frame cine loop for playback and analysis.
________________________________________
🔵Connectivity and Data Management
• Integration: DICOM 3.0 for seamless PACS connectivity.
• Data Storage: Built-in CD/DVD drive and multiple USB ports.
• Reporting: Comprehensive measurement and annotation packages for every clinical specialty.
• Workflow Tools: Customizable presets, patient information management, and smart review tools for optimized operation.
________________________________________
🔵Power and Mobility
• Power Backup: Integrated battery supports up to 30 minutes of autonomous operation.
• Mobility: Mounted on a smooth-rolling cart with a compact footprint for easy movement across departments.
________________________________________
Excellence in Every Image. Innovation in Every Detail.
📞 Contact Sky Derm today to request a quotation, schedule a live demonstration, or consult our clinical specialists for tailored solutions.
