Description

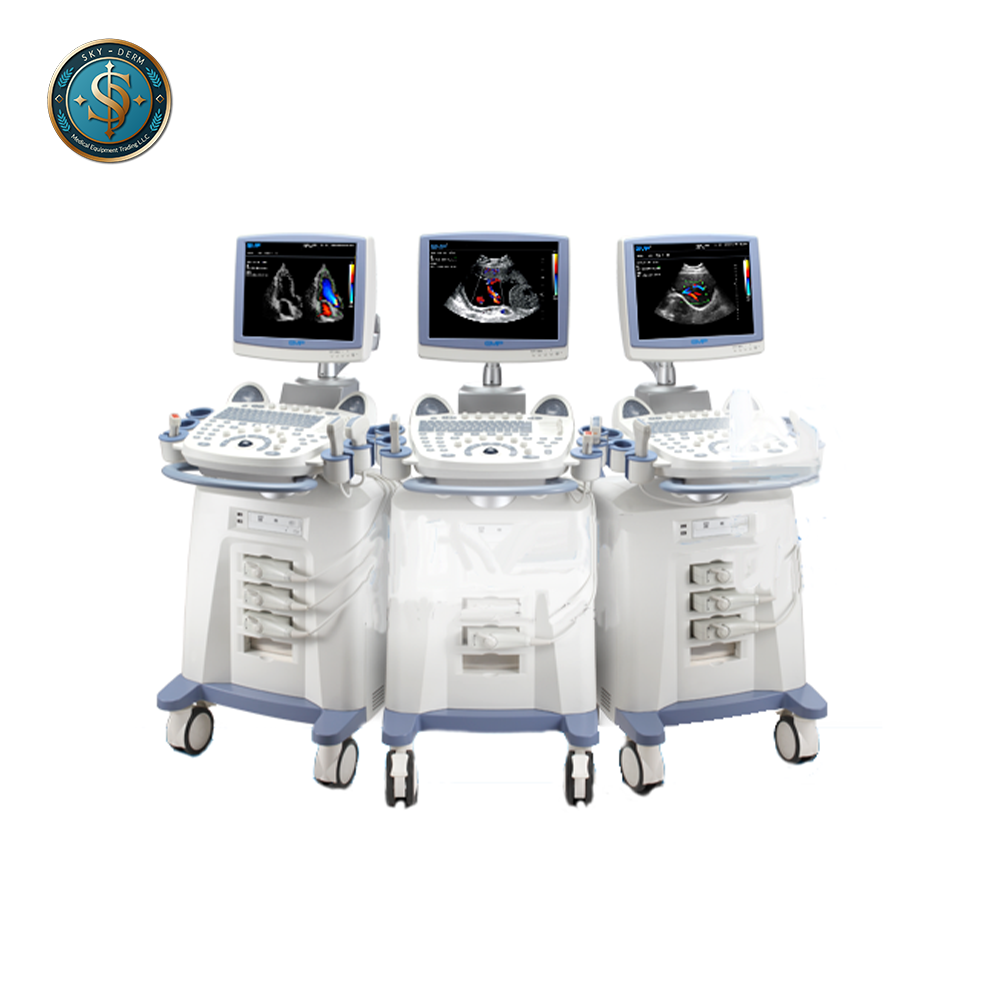

🔵EMP-3000 is a trolley-based color Doppler ultrasound system engineered for comprehensive diagnostic imaging across multiple medical disciplines.
Designed as a midrange diagnostic platform, it combines high-end imaging performance, ergonomic operation, and versatile clinical applications for hospitals, clinics, and diagnostic centers.
With its 21.5–23.8-inch high-resolution medical-grade display, intuitive control layout, and robust imaging technologies, the EMP-3000 provides superior image quality and workflow efficiency — ideal for radiology, cardiology, OB/GYN, and vascular imaging.
________________________________________
🔵Key Specifications and Features
Display and Ergonomics

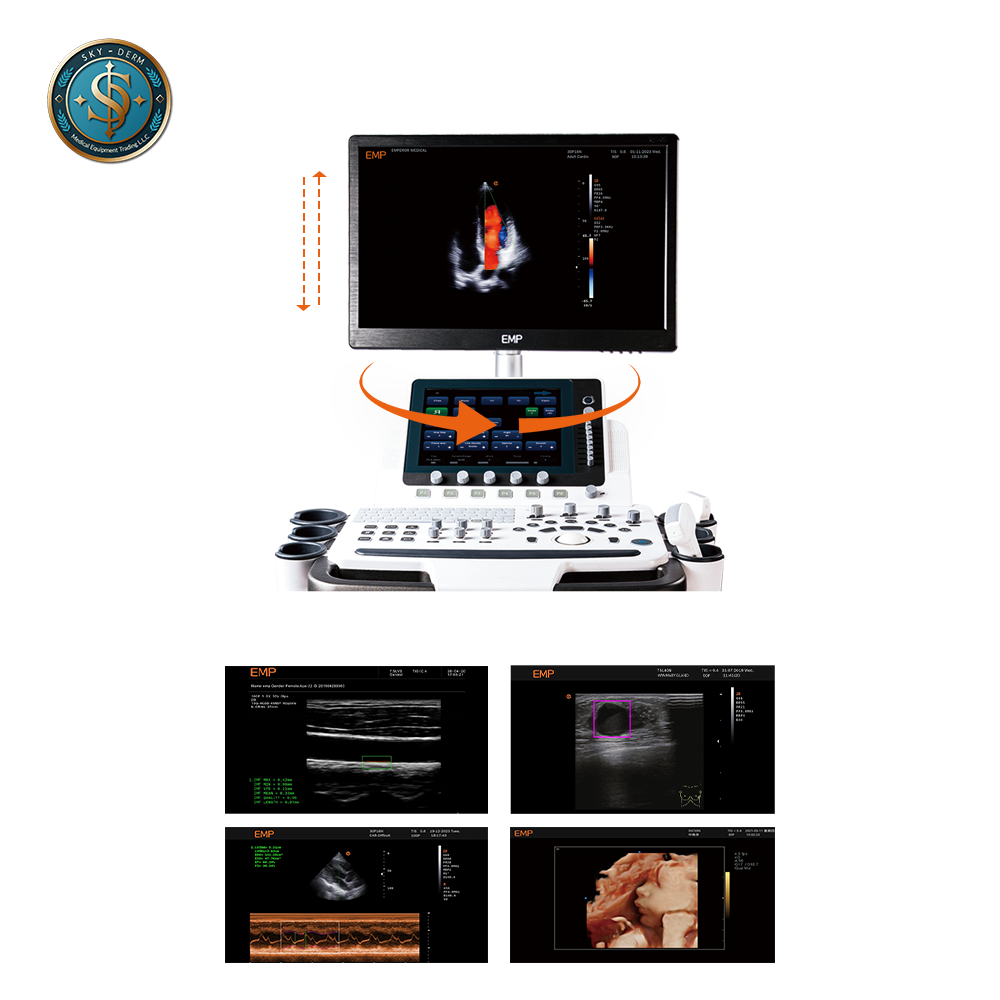

• Monitor: 21.5–23.8-inch high-definition LED medical-grade display
• Design: Adjustable articulating arm for flexible viewing and reduced fatigue

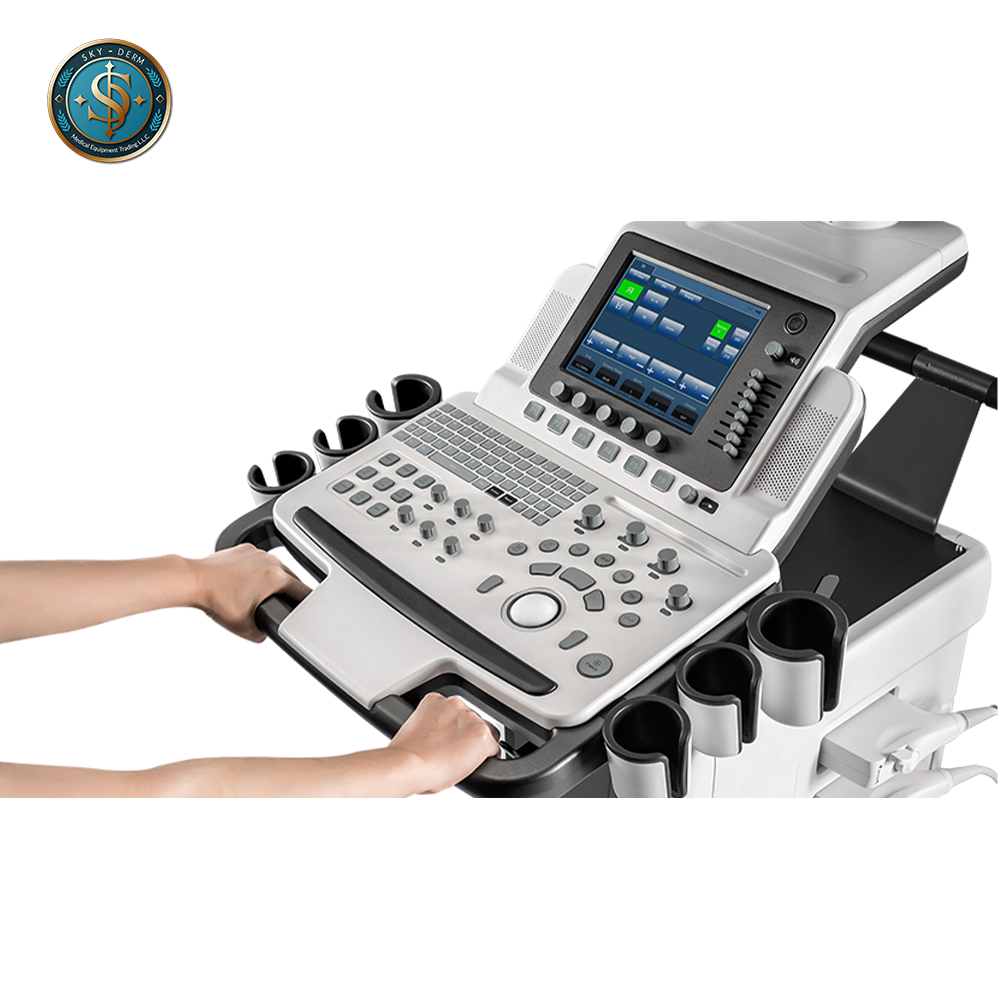

• Control Panel: Backlit ergonomic keyboard with optimized key layout
• Mobility: Four-wheel trolley base with secure locking system for stability
________________________________________
🔵Imaging Capabilities
• Imaging Modes: B-mode, M-mode, Color Flow Mapping (CFM), Power Doppler (PDI), and Pulsed Wave (PW) Doppler
• Advanced Technologies:
o ePure: Adaptive noise reduction for crystal-clear imaging
o eFCI: Frequency compound imaging for improved resolution
o eSCI: Spatial compound imaging to reduce artifacts
o eView: Panoramic imaging for wide-area visualization
________________________________________
🔵Clinical Applications
The EMP-3000 supports a full suite of clinical specialties:
• Radiology and abdominal imaging
• Adult and fetal cardiology
• Carotid and peripheral vascular studies
• Thyroid and small-parts examinations
• OB/GYN imaging including 4D fetal visualization
• Elastography and tissue stiffness evaluation
🔵Automated Diagnostic Tools:
• Auto EF (Ejection Fraction) calculation
• Auto IMT (Intima-Media Thickness) measurement
• Auto volumetric flow rate calculation
________________________________________
🔵Transducer Support and Connectivity
• Probe Ports: Up to 3 active connectors
• Supported Probes: Convex, linear, micro-convex, and transvaginal
• Frequency Range: Up to 17.0 MHz for high-resolution superficial imaging
• Data Management:
o USB ports and DICOM 3.0 compatibility
o DVD-R/W recording
o Comprehensive reporting and measurement packages
________________________________________
🔵Workflow and Usability

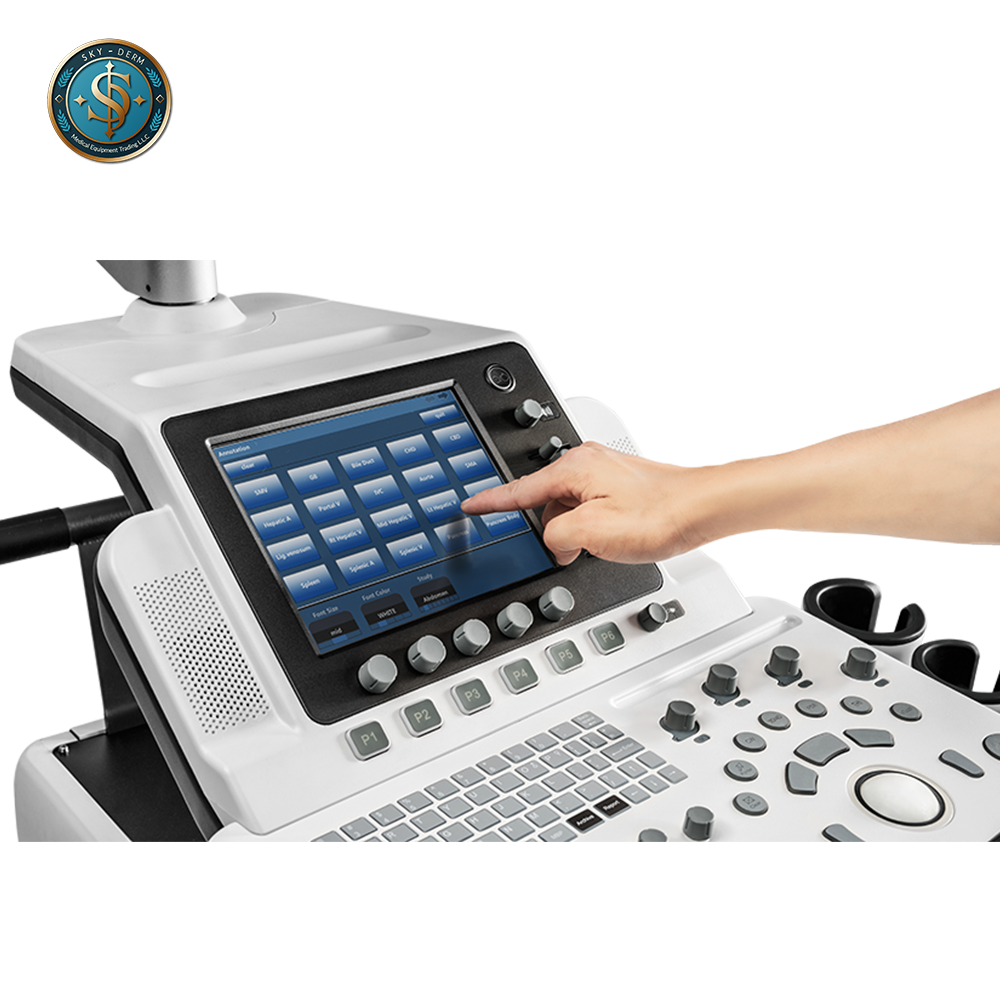

• eTouch One-Key Optimization: Instantly adjusts image parameters across modes (2D, CFM, PW)
• Picture-in-Picture Display: Compare dual views for greater diagnostic accuracy
• Customizable Presets and Body Markers: Simplify scanning workflow
• Cardiac and Vascular Reporting: Integrated templates and automated measurement options
________________________________________
🔵Market Advantages
The EMP-3000 bridges the gap between entry-level and high-end ultrasound systems, offering advanced diagnostic features at a competitive price point.
Available for human and veterinary use (EMP-3000 VET), it’s an ideal solution for medical equipment distributors and healthcare providers seeking reliable, mid-range ultrasound technology.
________________________________________
Precision Imaging. Powerful Performance. Proven Reliability.
📞 Contact Sky Derm today to request a quotation, arrange a live demonstration.
