Description

🔵The Sky Derm G20 Color Doppler Portable Ultrasound System represents a new generation of lightweight, high-performance diagnostic imaging.
With a 12.1-inch high-resolution LCD display and weighing less than 5 kg, the G20 delivers advanced imaging quality and true portability for hospitals, clinics, and point-of-care environments.
Powered by a fully digital platform, it integrates state-of-the-art imaging technologies—including ESCI Spatial Compound Imaging, Triplex Mode, and DPDI (Directional Power Doppler Imaging)—to provide precise visualization of tissue structures and vascular flow.
________________________________________
🔵Core System Specifications
• Display: 12.1-inch high-resolution LCD
• Weight: < 5 kg (including battery)
• Design: Compact and portable for desktop or field use
• Battery Life: Up to 3 hours of continuous operation
• Imaging Modes: B, M, B/M, 2B, 4B, PW, CFM, DPDI, Triplex
• Optimization: ESpeed One-Key Auto Optimization
• Panoramic View: EView Panoramic Imaging
• Needle Enhancement: Improved visibility for ultrasound-guided biopsies
• Connectivity: USB storage & DICOM 3.0 network integration
________________________________________
🔵Advanced Imaging Technologies

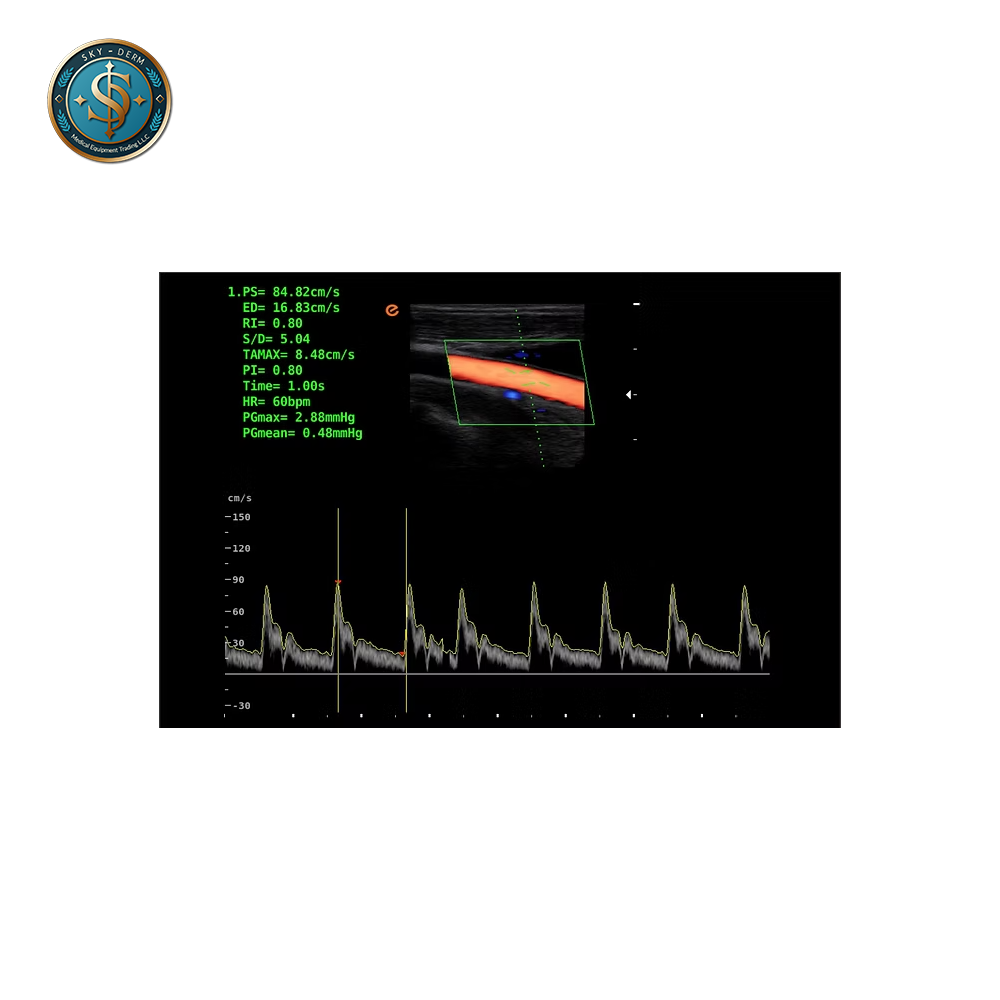

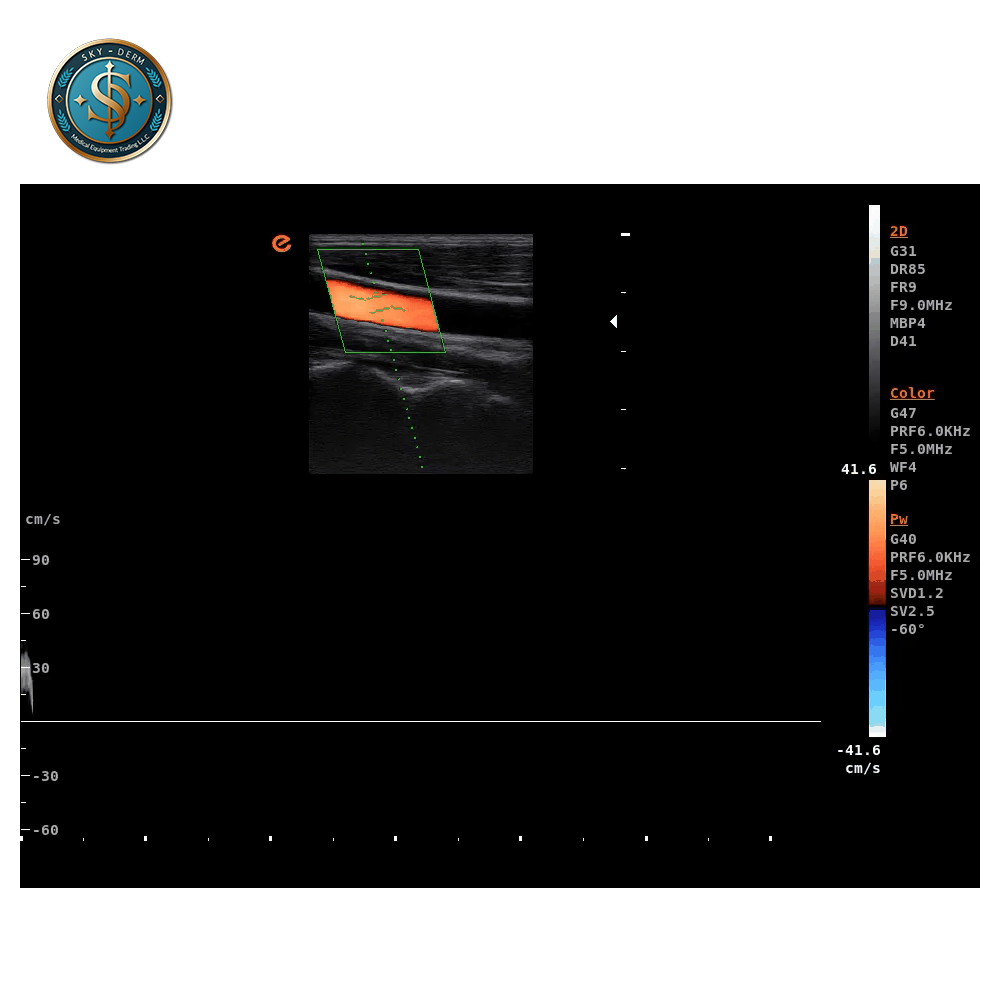

• Three Simultaneous Real-Time Modes: B + CFM + PW for dynamic vascular assessment.
• DPDI (Directional Power Doppler): Enhances low-velocity flow detection and visualizes microvascular patterns with directional sensitivity.
• ESCI Spatial Compound Imaging: Combines multiple scanning angles to create clearer, artifact-free images with improved contrast resolution.

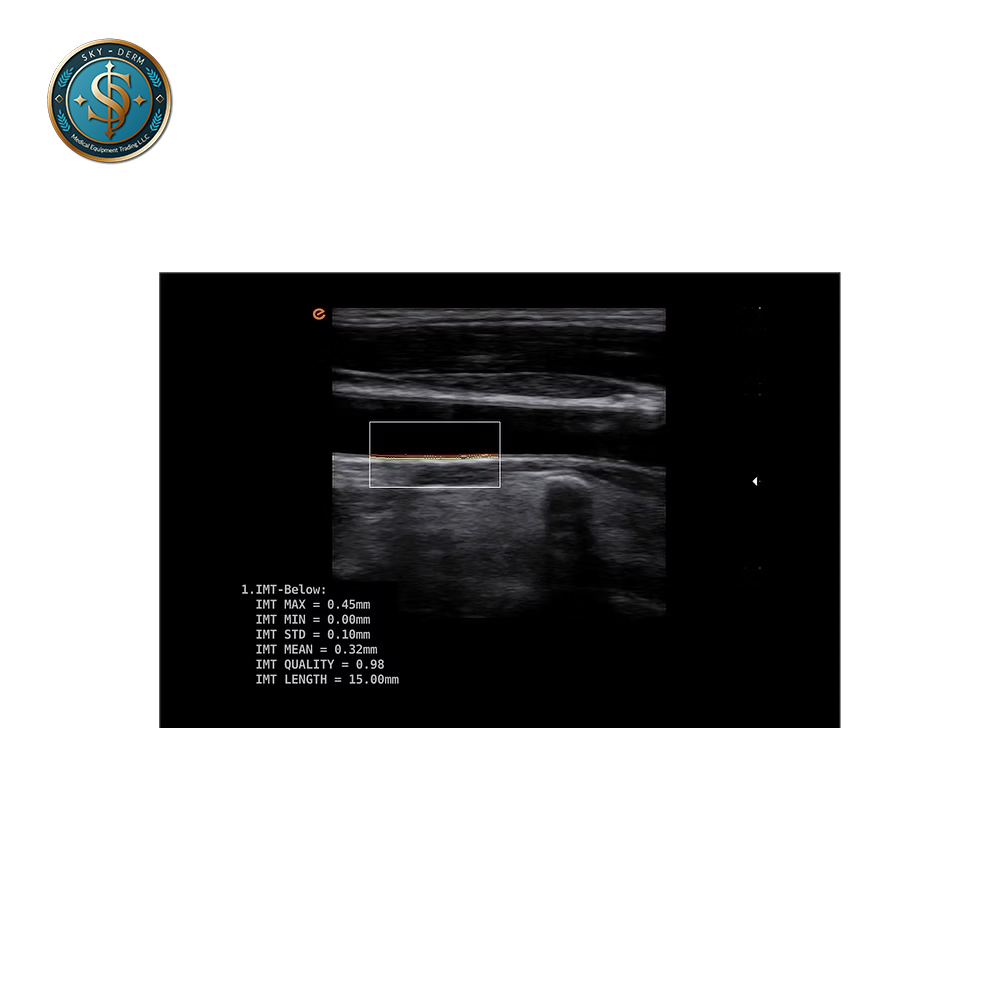

• IMT Auto Measurement: Automatically calculates intima-media thickness for arterial diagnostics.
• eTSI (Tissue Specific Imaging): Self-adaptive technology that optimizes imaging for different tissue types.
• EView Panoramic Imaging: Provides extended field of view for large organ and musculoskeletal applications.
• Needle Enhancement Technology: Improves needle visibility during guided procedures and biopsies.
________________________________________
🔵Clinical Applications
The G20 Ultrasound System supports a wide range of diagnostic applications, including:
• Abdominal and pelvic imaging
• Vascular and arterial studies
• Cardiac and peripheral flow assessment
• Obstetric and gynecologic imaging
• Small parts and musculoskeletal scans
• Ultrasound-guided biopsy and interventional procedures
• Emergency and point-of-care diagnostics
________________________________________
See More. Diagnose Better.
📞 Contact Sky Derm today to request a quotation, book a live demonstration, or speak with our technical team for custom integration solutions.
