Description

🔵 G30 Portable Ultrasound System delivers premium diagnostic imaging in a compact, laptop-style design built for clinical mobility.
Weighing only 6.0 kg and featuring a 15-inch high-resolution LED display, the G30 offers exceptional clarity, speed, and reliability for both routine and advanced diagnostic procedures.
Its built-in lithium battery provides up to 3 hours of continuous operation, making it perfect for clinics, hospitals, and point-of-care diagnostics.
Compact dimensions (370mm × 360mm × 78mm) make it ideal for professionals who demand portability without compromising imaging quality.
________________________________________
🔵Comprehensive Imaging Modes
The G30 supports all major imaging modes required in modern diagnostic practice:
• B-Mode: High-quality grayscale imaging
• M-Mode: Real-time motion analysis for cardiac exams
• B/M Mode: Combined anatomical and motion visualization

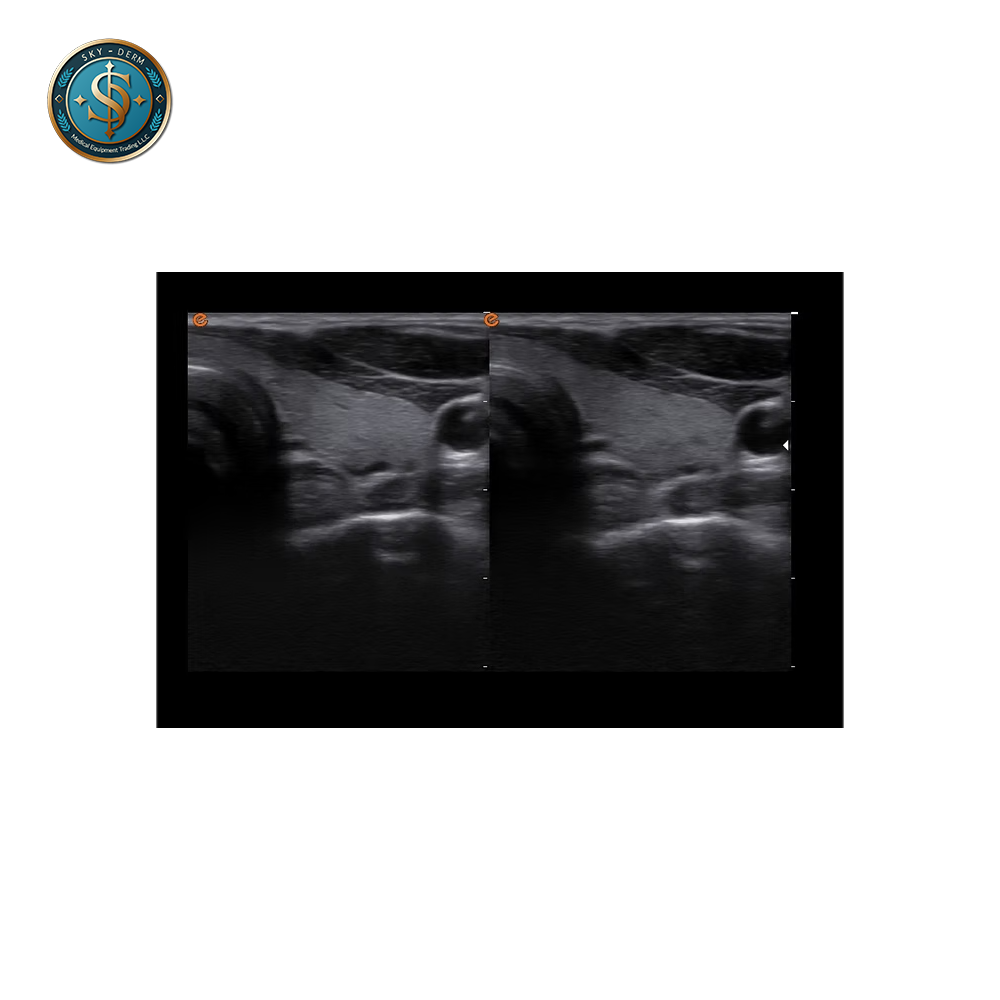

• 2B & 4B: Dual and quad-view image display for comparison

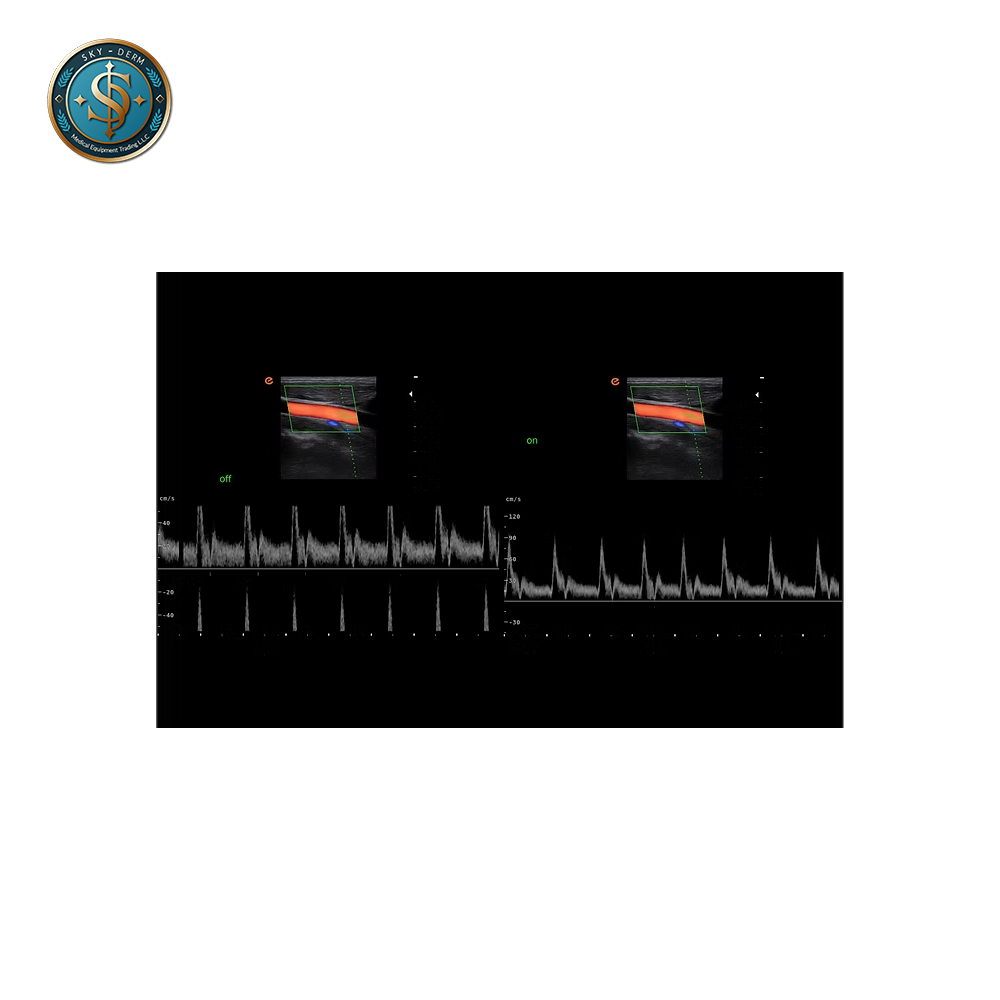

• PW (Pulsed Wave Doppler): Quantitative blood flow measurement
• DPDI (Directional Power Doppler Imaging): High sensitivity to low-flow vascular signals
• CFM (Color Flow Mapping): Real-time color representation of vascular flow
• CW (Continuous Wave Doppler): High-velocity flow measurement
• Triplex Mode: Simultaneous display of B-mode, Color Doppler, and Spectral Doppler
________________________________________
🔵Advanced Imaging Technologies
• ESCI (Enhanced Spatial Compound Imaging): Merges multiple scan angles to eliminate speckle noise and improve image contrast.

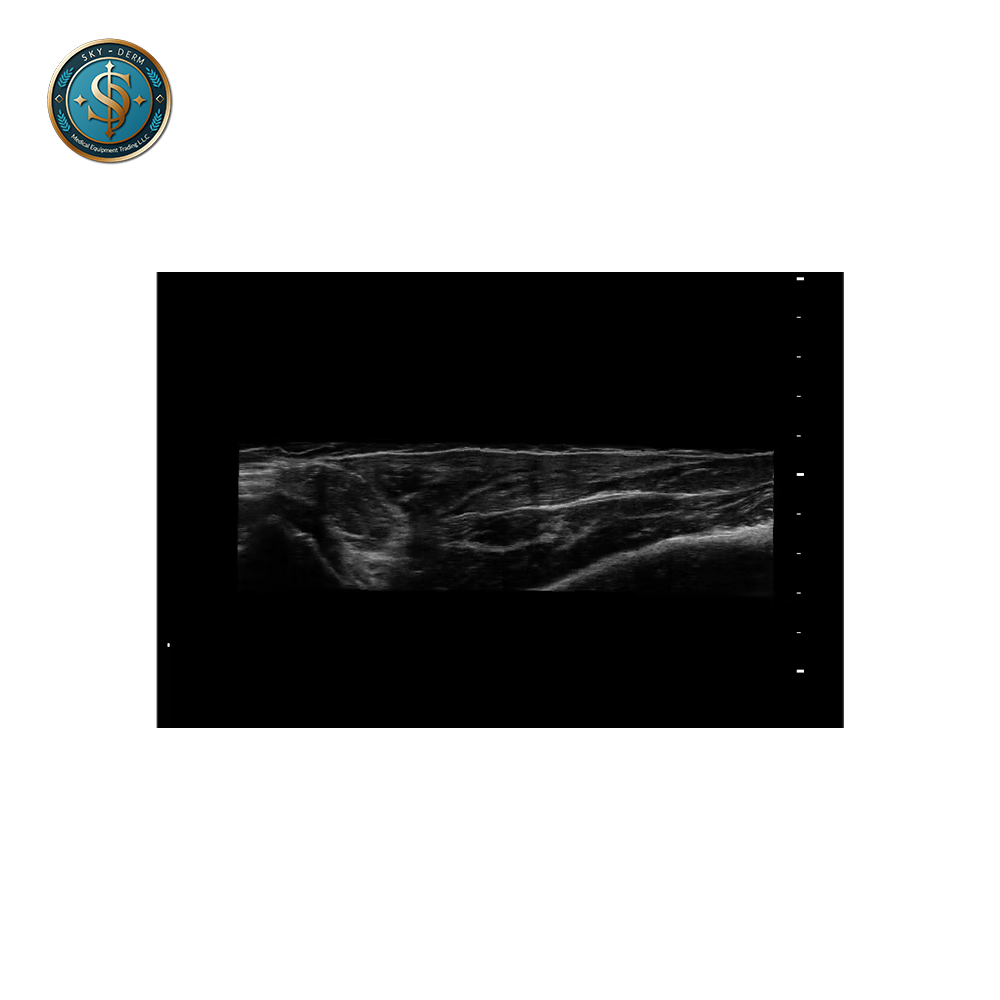

• EView Panoramic Imaging: Creates wide-field anatomical images ideal for musculoskeletal and large organ diagnostics.
• Needle Enhancement: Improves needle visibility and trajectory during ultrasound-guided interventions and biopsies.

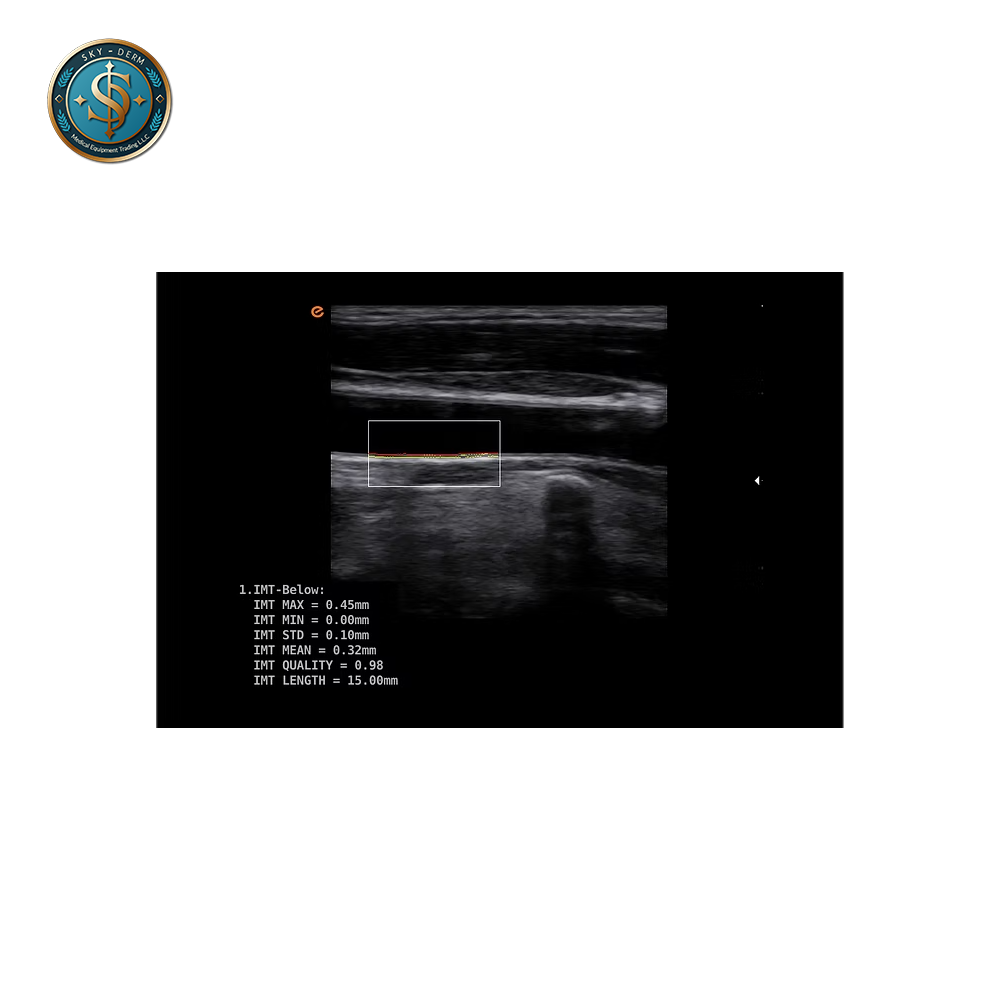

• IMT Auto Measurement: Automatically calculates intima-media thickness (IMT) with intelligent vascular reporting.
• eFCI (Enhanced Frequency Compound Imaging): Provides consistent image resolution across varying depths.
• eSpeed One-Key Optimization: Instantly adjusts acoustic parameters for optimal image quality in all imaging modes.
• ePure Speckle Reduction: Proprietary noise suppression for clear, detailed imaging.
________________________________________
🔵Clinical Applications
The G30 includes specialized software for multiple diagnostic fields:
• Cardiology and vascular imaging
• Obstetrics and gynecology
• Urology and abdominal imaging
• Musculoskeletal and orthopedic exams
• Small parts and superficial structure imaging
________________________________________
🔵Technical Specifications
• Display: 15-inch LED with adjustable brightness and viewing angle
• Storage: 1TB internal hard drive for image archiving
• Connectivity: DICOM 3.0, USB 2.0, S-Video, RS232, A/V outputs
• Probes: Supports convex, linear, phased array, micro-convex, and transvaginal transducers
• Battery: Rechargeable lithium battery, up to 3 hours of continuous use
• Operating Conditions: +5°C to +40°C, ≤80% relative humidity
________________________________________
🔵Workflow and Integration
• Patient Information Management System: Streamlined reporting and data organization
• Multi-channel output options: Real-time image and video sharing
• DICOM 3.0 compliance: Full hospital network integration
________________________________________
Power. Precision. Portability.
📞 Contact Sky Derm today to request a quotation, book a live demo, or discuss integration options for your clinic or hospital.
